BAT

Industrial IP66 luminary with lm output from 18000 to 42600 lm

The powerful industrial luminaire BAT delivers exceptional illumination for large – scale areas with high ceilings up to 15 m. Featuring DALI control for energy efficiency and precise lighting, it boasts an IP66 rating and operates between -20°C and +40°C. Available in 120 W to 300 W options, it adapts to various needs. BAT supports both pendant (with optional extended cable) and floor mounting for flexible installation.

APPLICATIONS. This lighting solution is ideal for high-bay environments such as warehouses, factories, bus stations, airports, parking lots, car washes, gymnasiums, sports venues and cold storage facilities.

Book a product demo

Annu Virtanen

Would you like to learn more about this product?
Book a product demo with one of our experts!

Annu Virtanen

+358 50 352 4102

TECHNICAL DATA

Product details

TypeBAT LED
Light sourceLEDs 5050
ConnectionSupply cable 1,00 m or quick conector
ColorLight Grey
Driver90-305 VAC
Optics30 / 60 / 90
MaintenanceOptical module sealed for life, No internal cleaning required, Bracket for suspended mounting
IP ClassIP66
Protection ClassesClass I
Color Rendering IndexRa≥80
Operating temperature-20°C ≤ Ta ≤ +40°C
RemarksLuminaries are ready to install
MaterialHeat sink: aluminum extrusion, anodized Optional painted metal sheet cover.
InterfacesIK08
Light color3000K – 6500K
Power consumptionFrom 120W to 300W
LifetimeL90 B10 100 000 h (Ta-25 °C)
Suitable for mains voltage peaks (burst/surge)up to 6 kV
Size362 x 317 x 101 mm; 535 x 317 x 101 mm; 708 x 317 x 101 mm.
Control typeDriver On/Off

Accessories

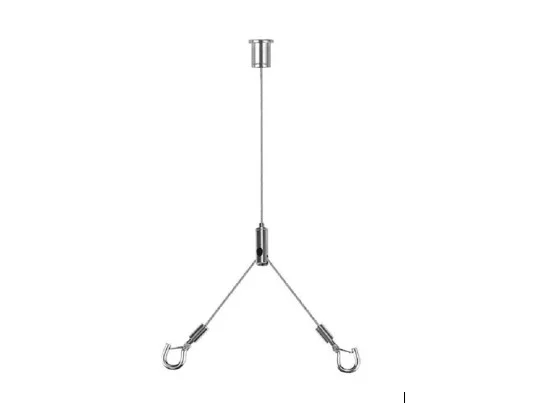

Suspension cable set
Code
IL11009
