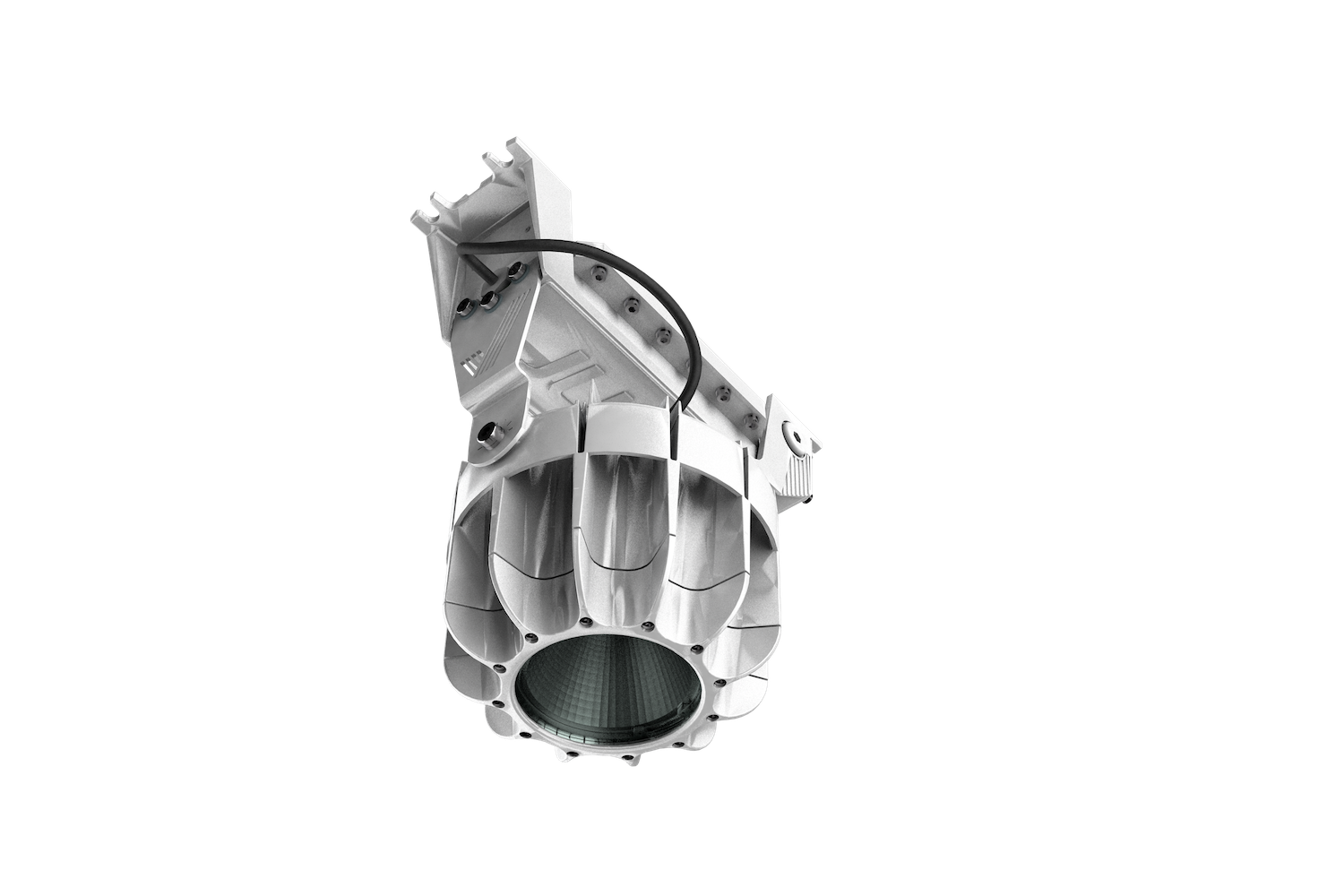

JUKO HX

JUKO HX – a finnish atex luminaire

JUKO HX is an ATEX light completely manufactured and designed in Finland for zones 1, 21, 2 and 22. High-quality components and innovative solutions create a luminaire that lasts even in the most difficult industrial locations.

No Caption
No Caption
No Caption
No Caption
No Caption
No Caption

DOWNLOADS

Datasheet
Operating-instructions_2019
HX ldt

TEKNINEN DATA

Mechanical

frameAlSi10
GlassBorosilicate pressure glass
CoatingUnorganic zinc flake coating
reflectorAluminum
fastenersA4
cable glandsM25
MountingWall / Ceiling / Pole
Installation adapterOptional
Adjustability-90° … +90°

electrical

VoltageAC
voltage range100-240
led driverConstant current
power50W / 70W / 90W

certificates

EX GASEx db mb op is IIC T5 Gb
EX DUSTEx tb op is IIIC T95°C Db
zones1,2 / 21,22
IECEx IECEx FTZU 18.0009X
ATEX FTZU 17 ATEX 0121X
IP RatingIP66

light

LED typeCOB
color temperature4000K
cri80-89
light output lm6500 / 9100 / 11700
efficacy~125 lm/W
lifespan L80100 000 h
beam24° / 40° / 55°

COUPLING

cable glandsM25
through wiringOptional
wire cross-section1,5 … 4 mm2
terminalWAGO push-in

other

OriginFinland
warranty5 years
CE markingYes
Requires professional installationYes

DIMENSIONS
