JUKO AFX

JUKO AFX is our most powerful ex solution

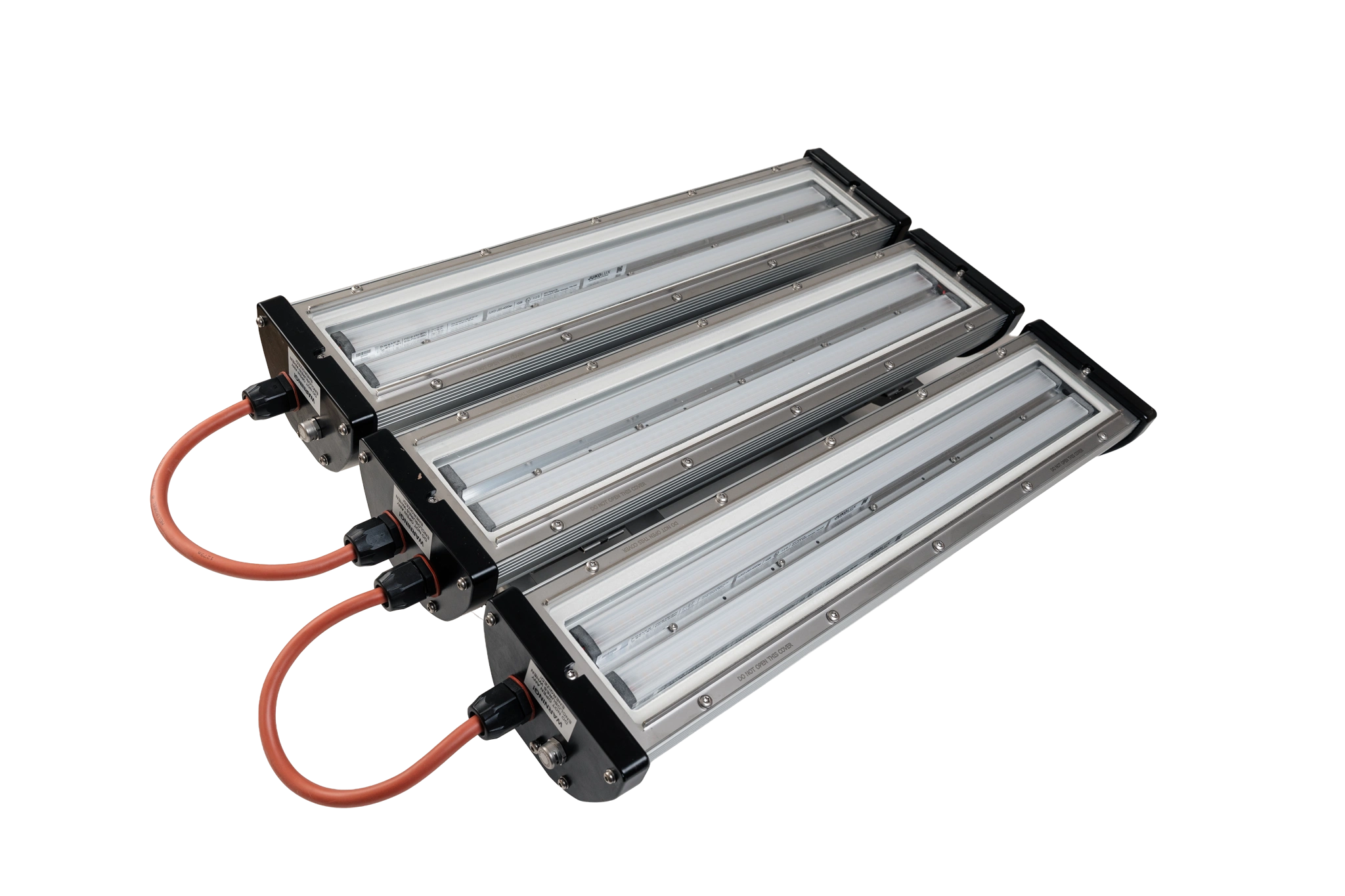

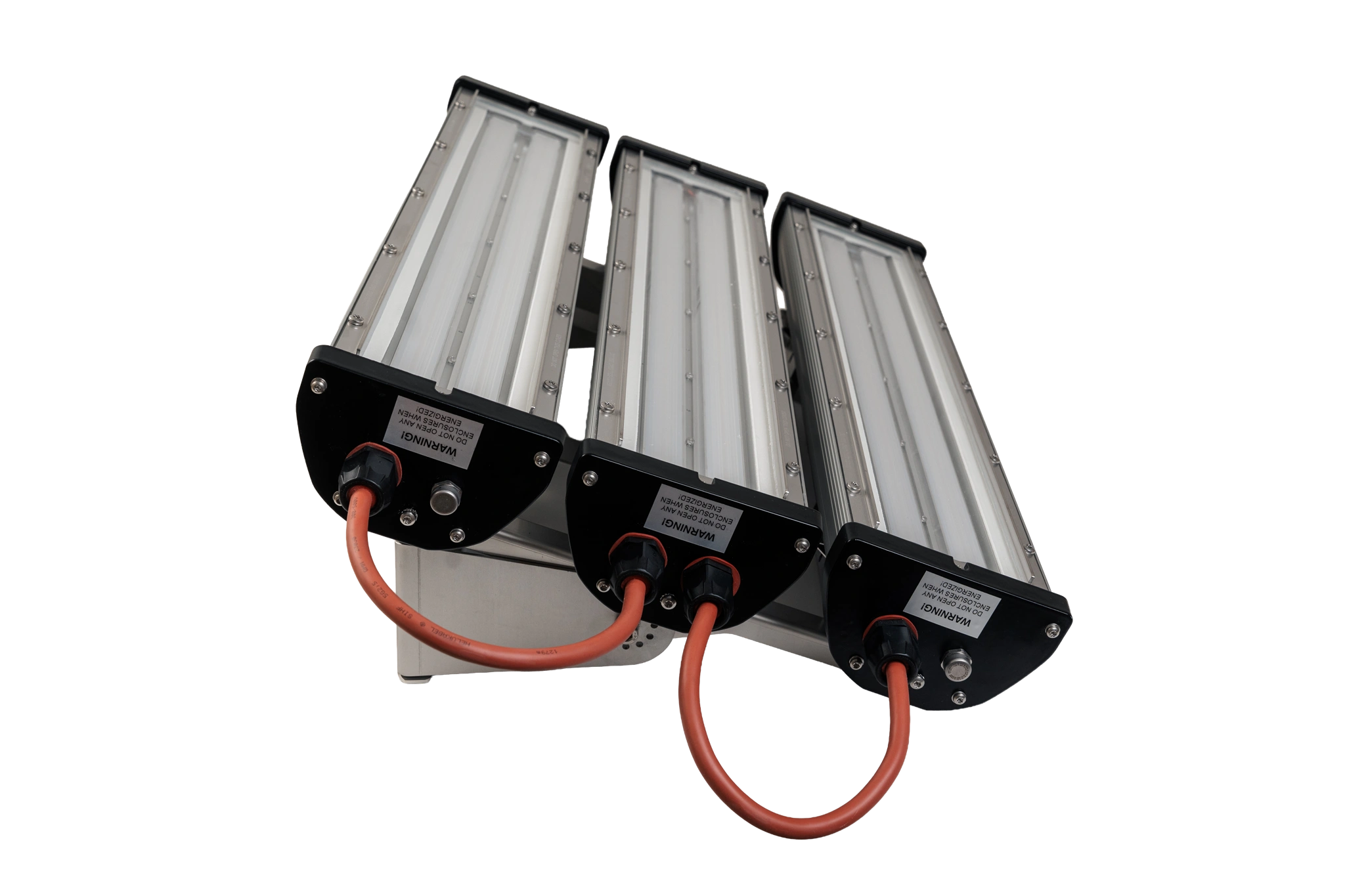

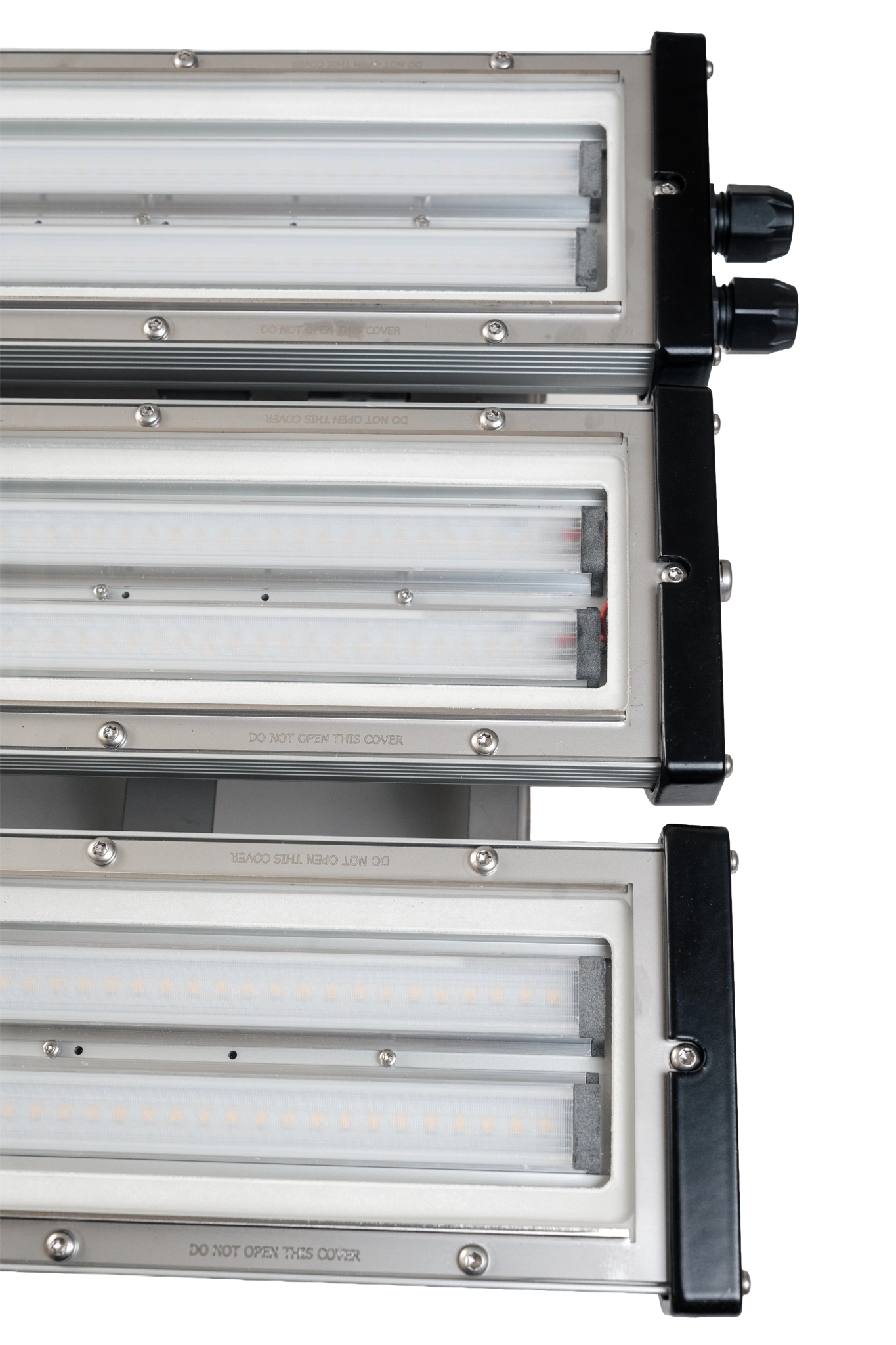

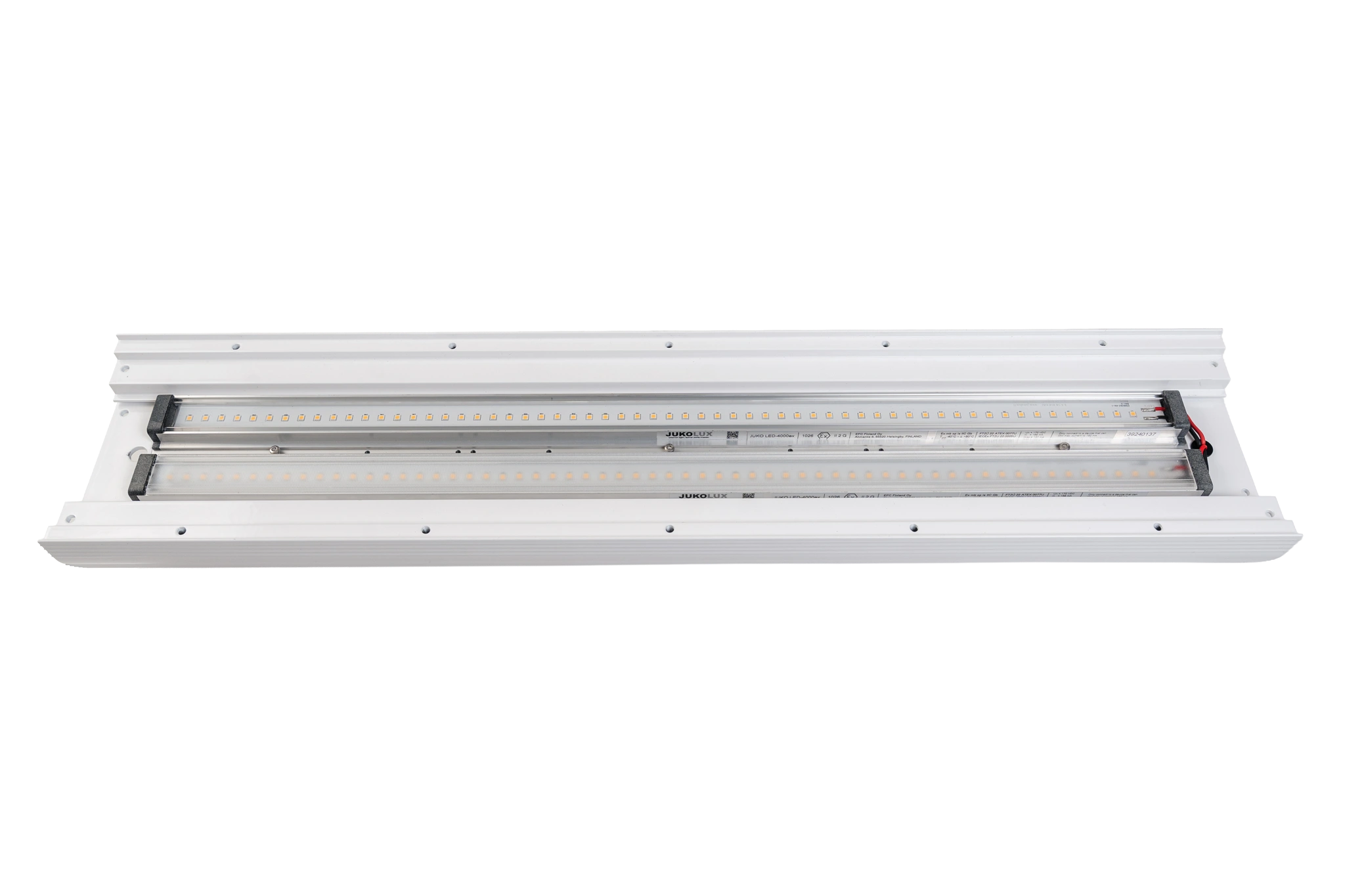

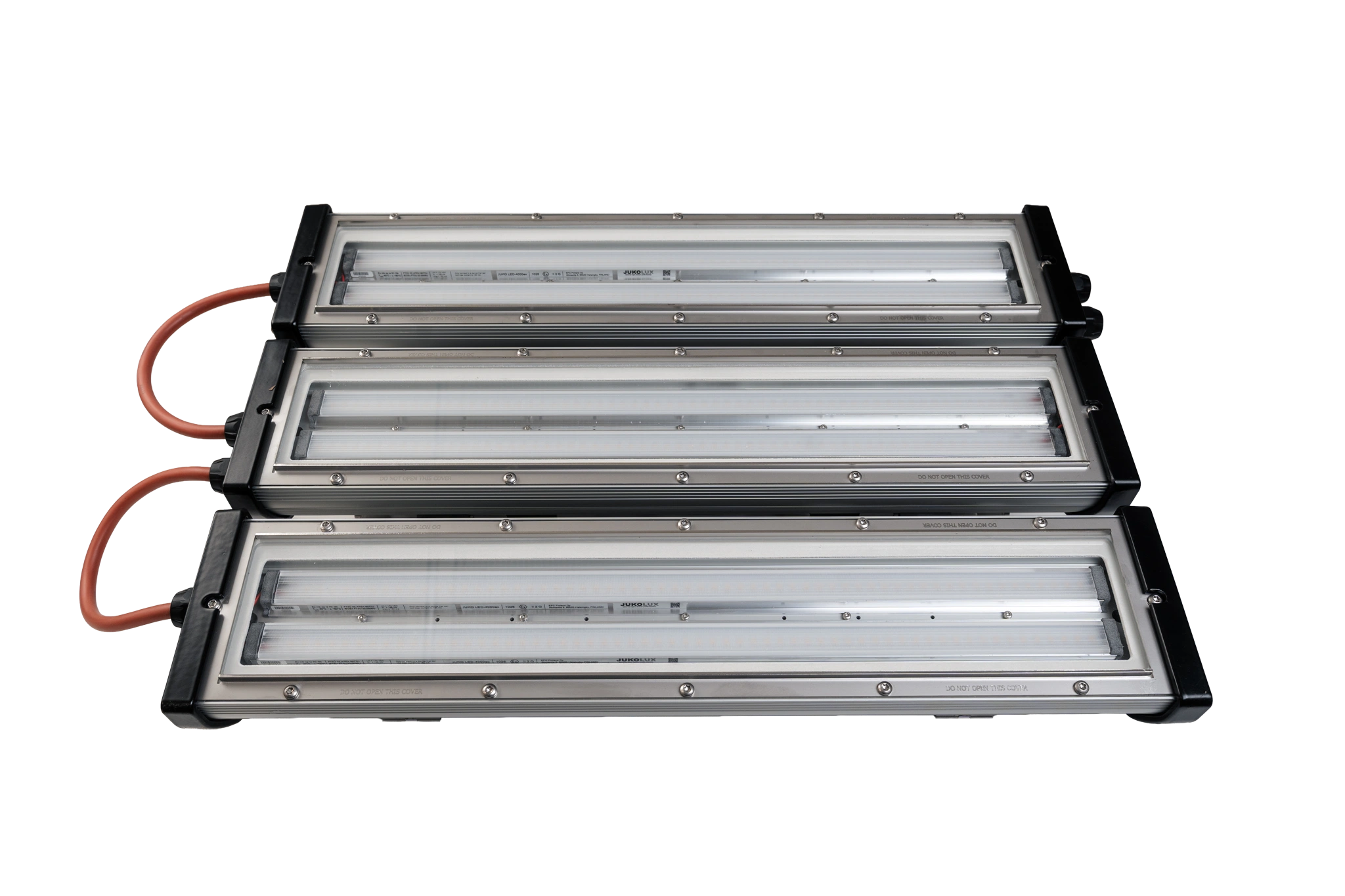

JUKO AFX is a unique, ATEX-certified light manufactured in Finland. It is developed with industry professionals to work in the most demanding conditions. The core of the luminaire consists of two or three light modules, allowing for 100W or 150W power.

No Caption

Gas environments Zones 1 & 2

Ex eb mb op is IIC T4 Gb

IIC for all gas environments

Dust environments Zones 21 & 22

Ex tb op is IIIC T85°C Db

IIIC for all dust environments

Optical radiation

Ex op is

Ex op is certified

DOWNLOADS

AFX Datasheet

AFX Certificate

Operating instructions

AFX ldt

TEKNINEN DATA

luminaire certificate

GasEx eb mb op is IIC T4 Gb

DustEx tb op is IIIC T85°C Db

Zones1,2 / 21,22

IECEx IECEx FTZU 23.0010X

ATEX FTZU 23 ATEX 0017X

IP RatingIP66

led module certificate

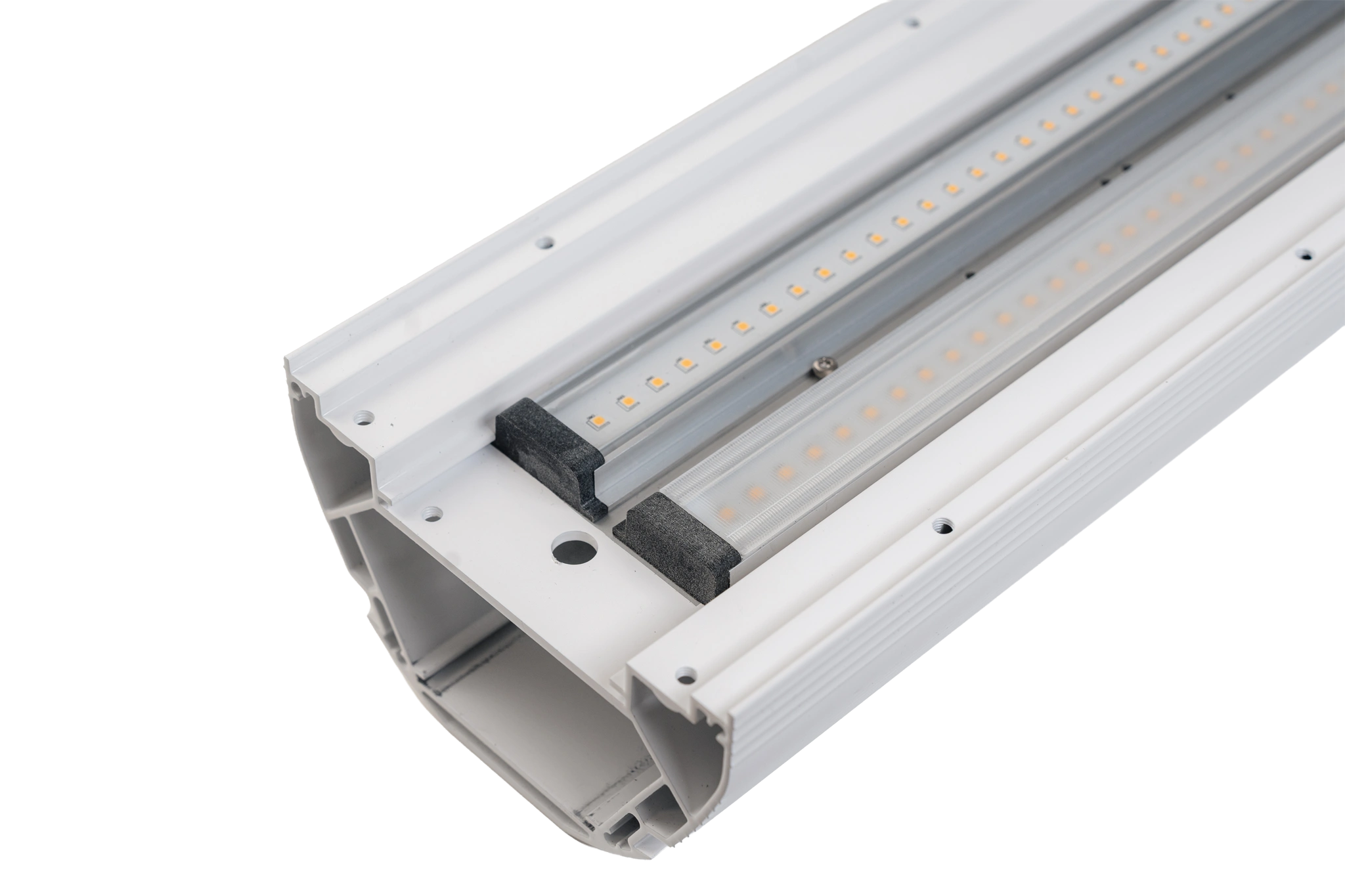

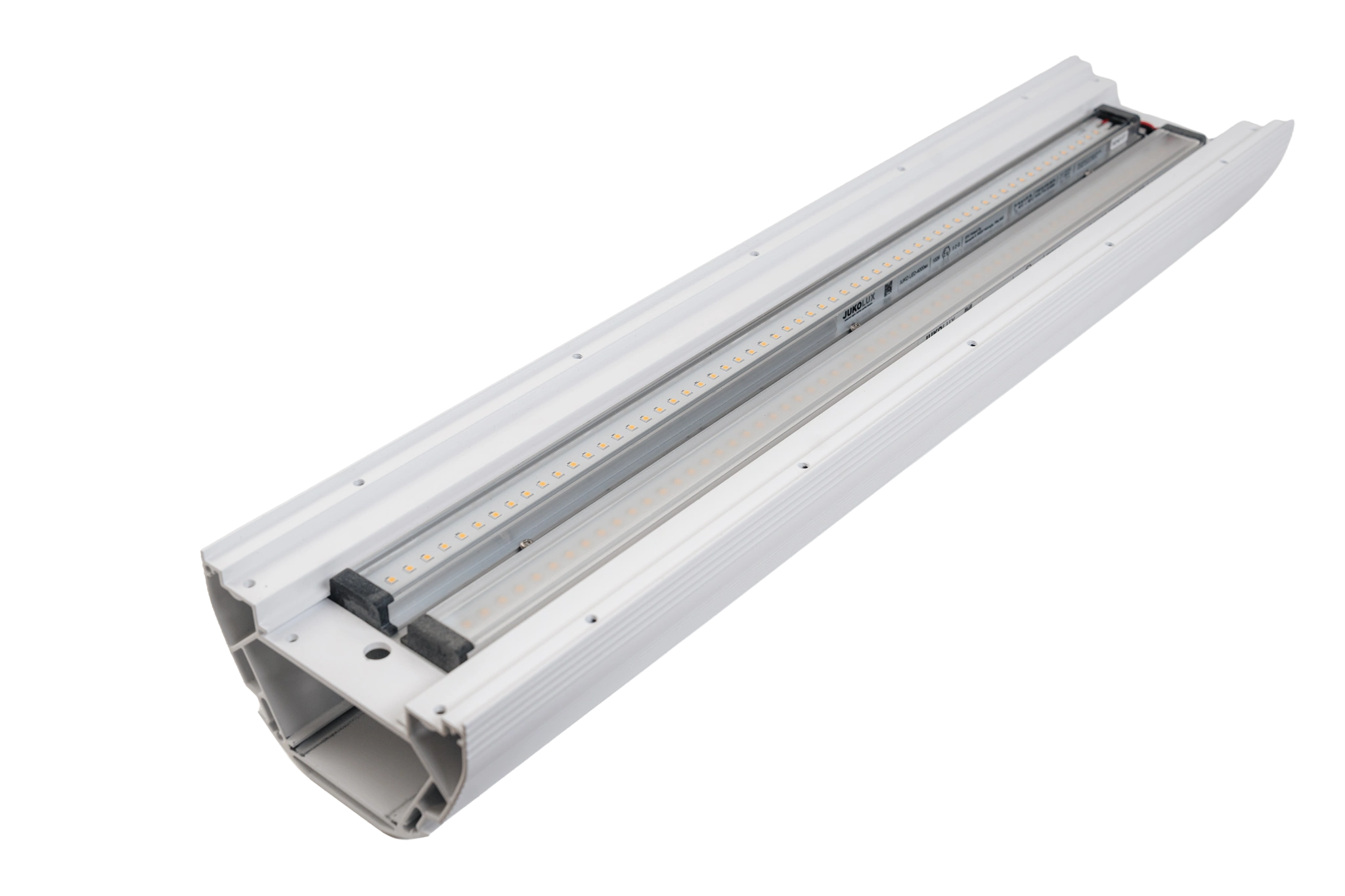

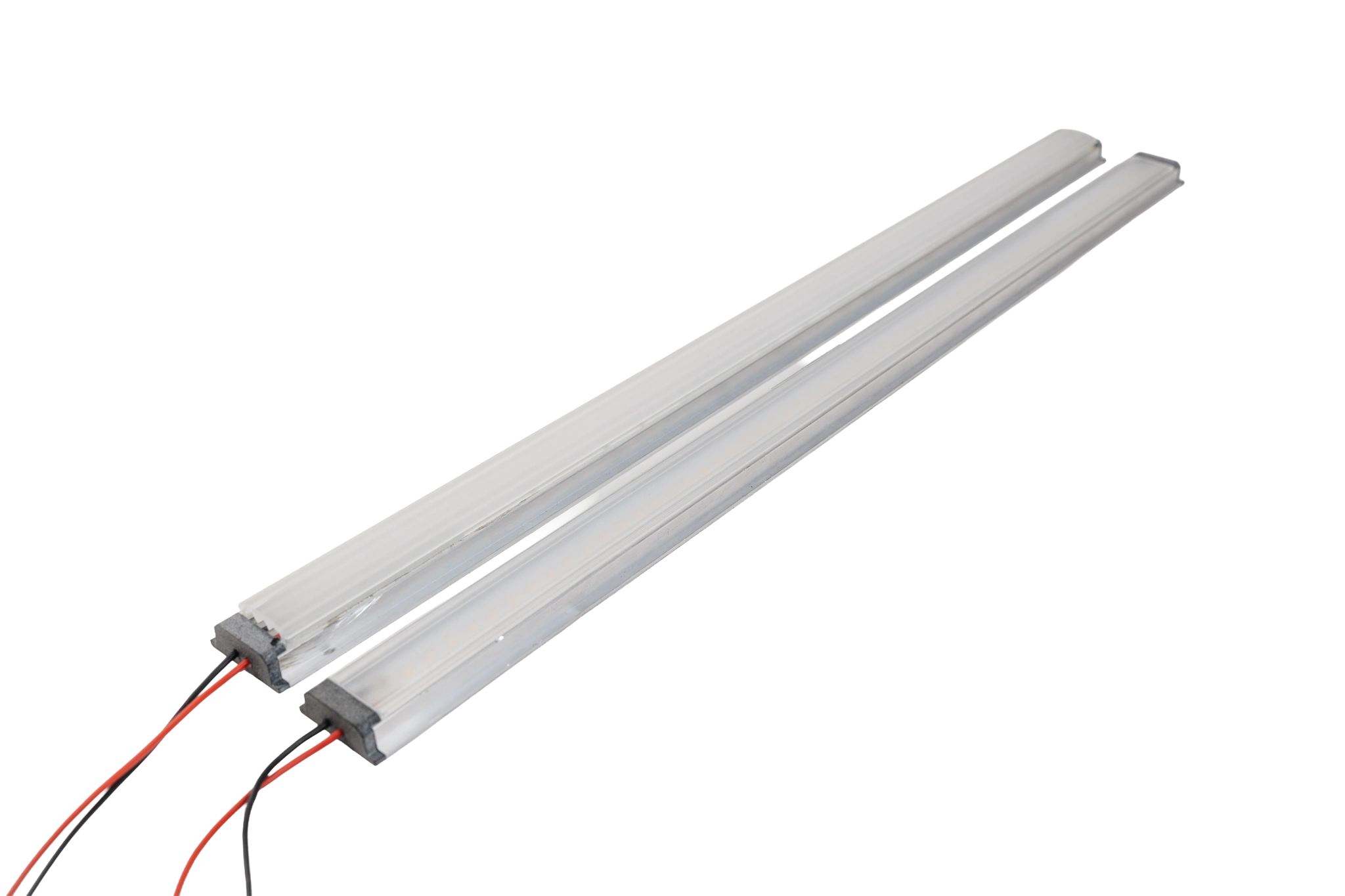

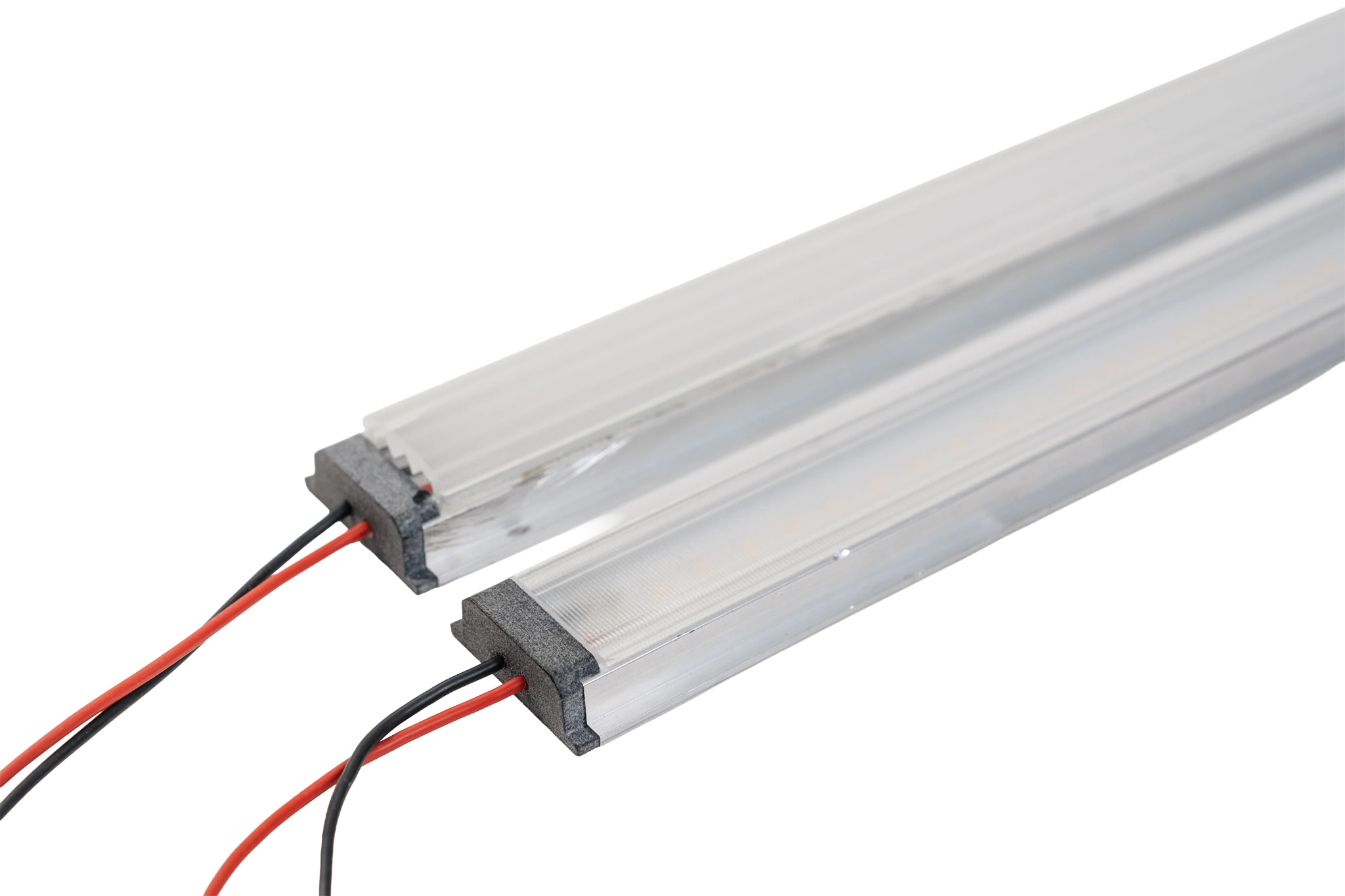

LED ModuleJUKO LED-4000Ex

gasEx eb mb op is IIC T4

IECEx IECEx FTZU 22.0005U

ATEX FTZU 22 ATEX 0077U

LED DRIVER CERTIFICATE

led driverJUKO PU150Ex

gasEx eb mb IIC T6

IECEx IECEx FTZU 23.0007U

ATEX FTZÚ 22 ATEX 0078U

mechanical

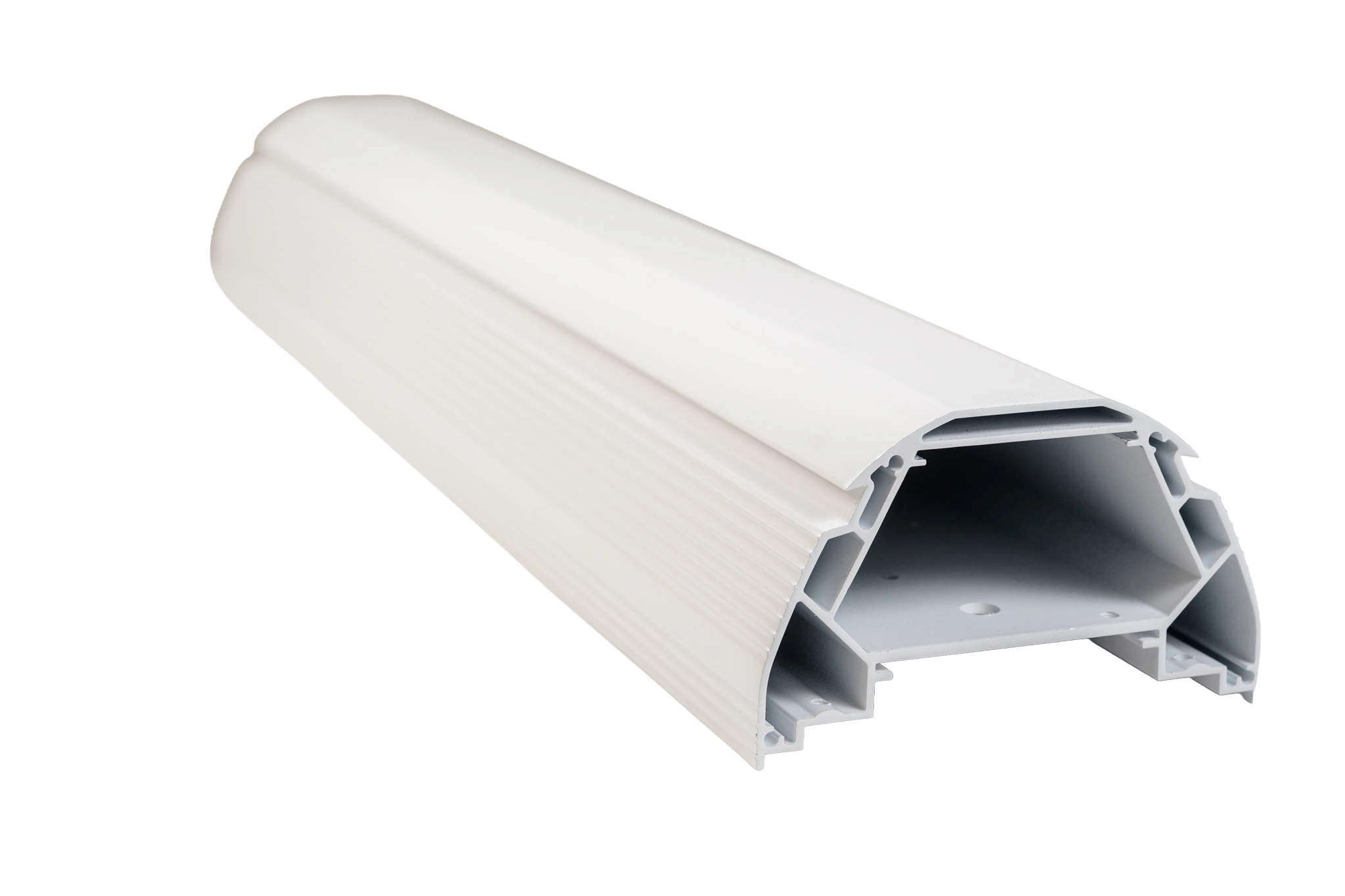

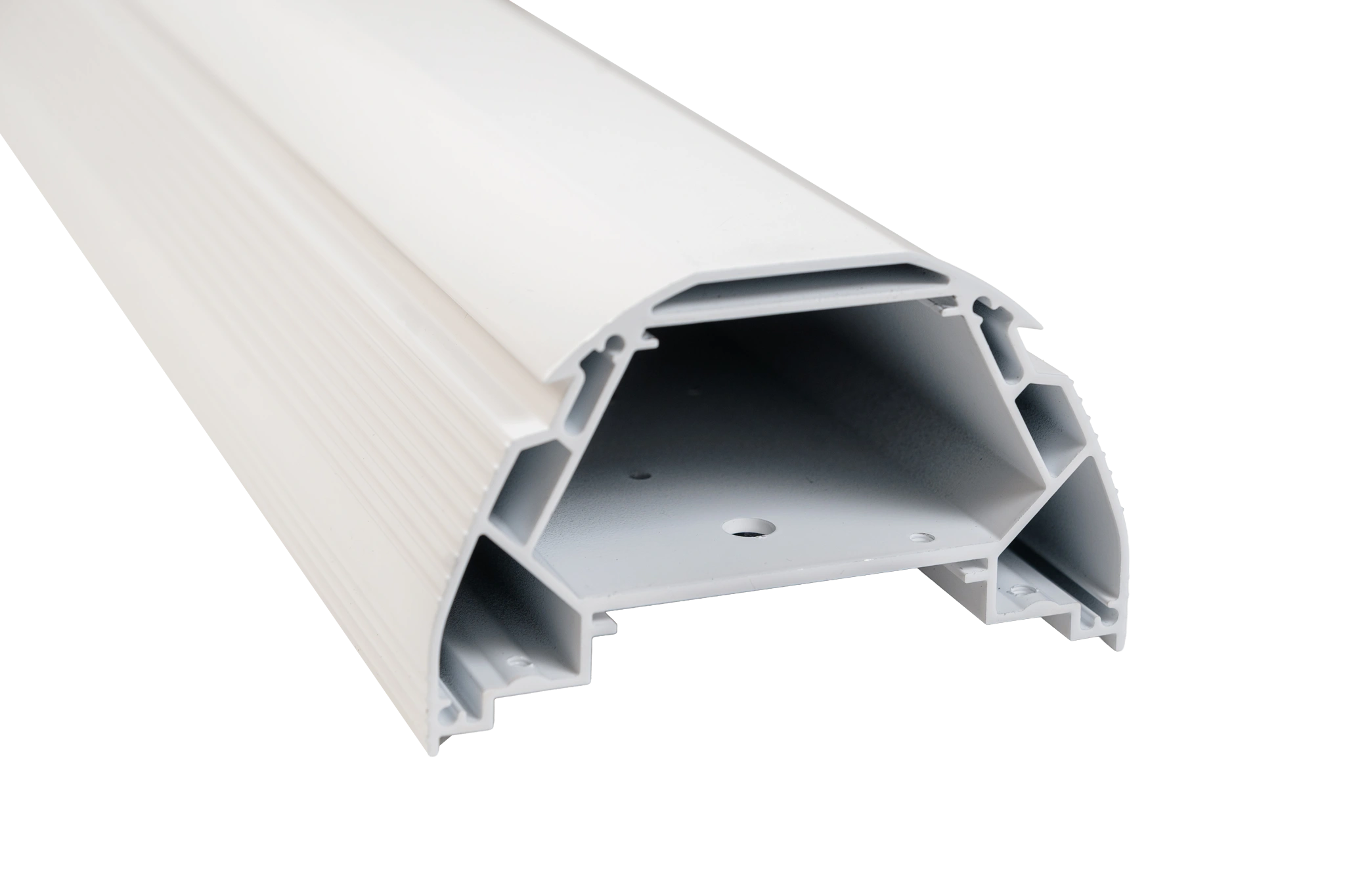

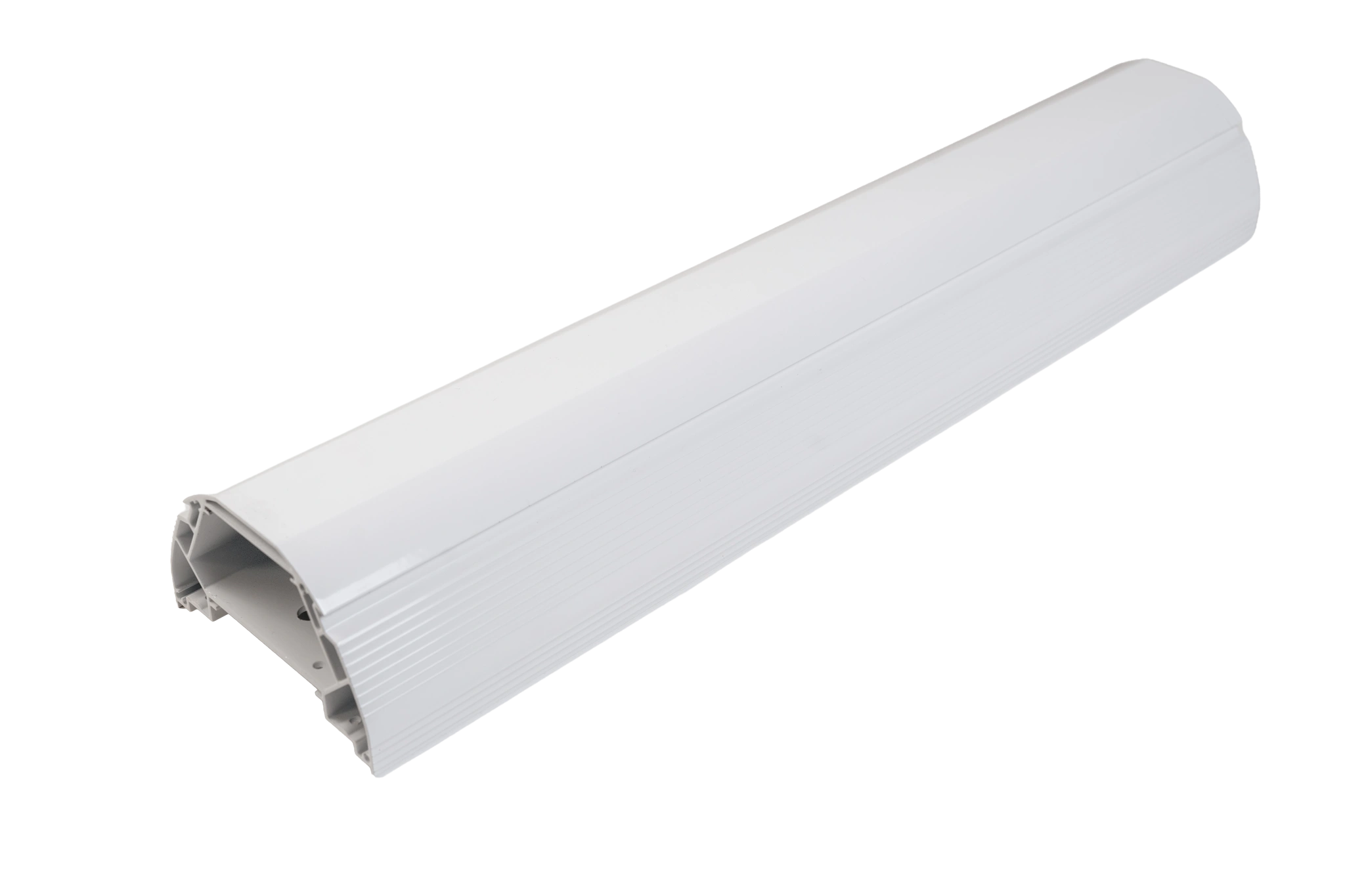

FrameExtruded aluminum

CoverSpecial glass

opticsPMMA

fastenersA4

Cable glandsPolyamide (7J impact)

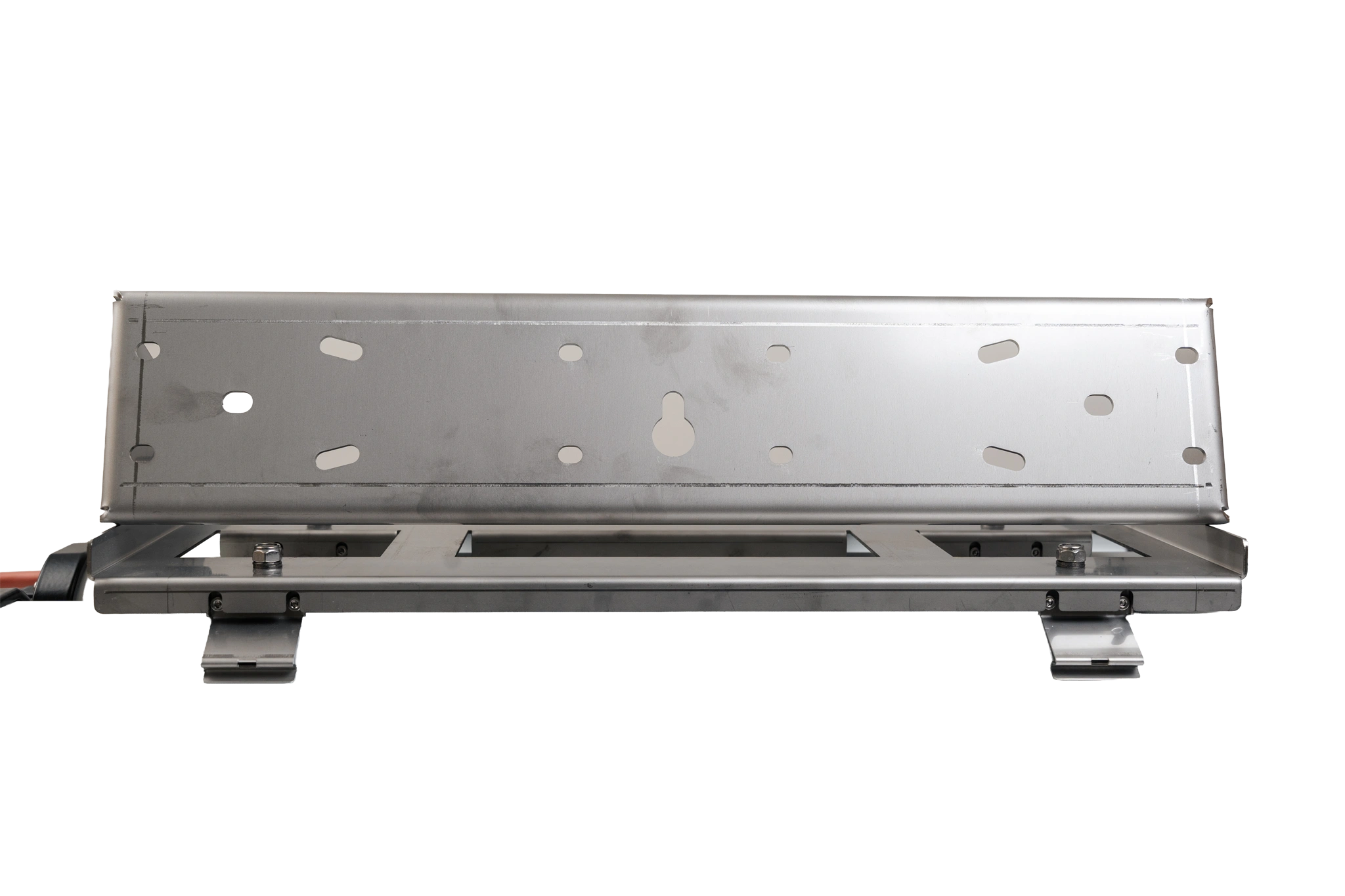

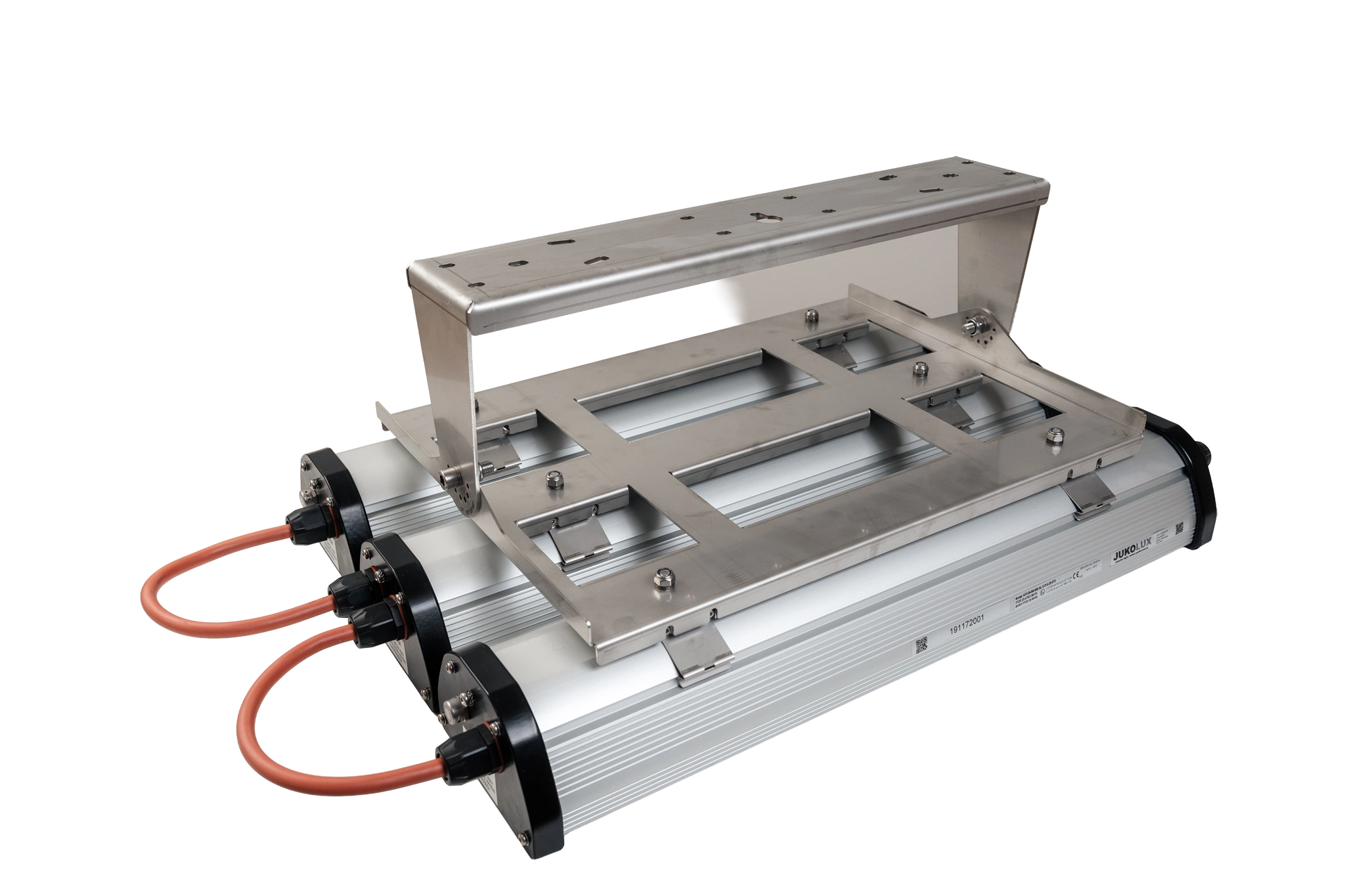

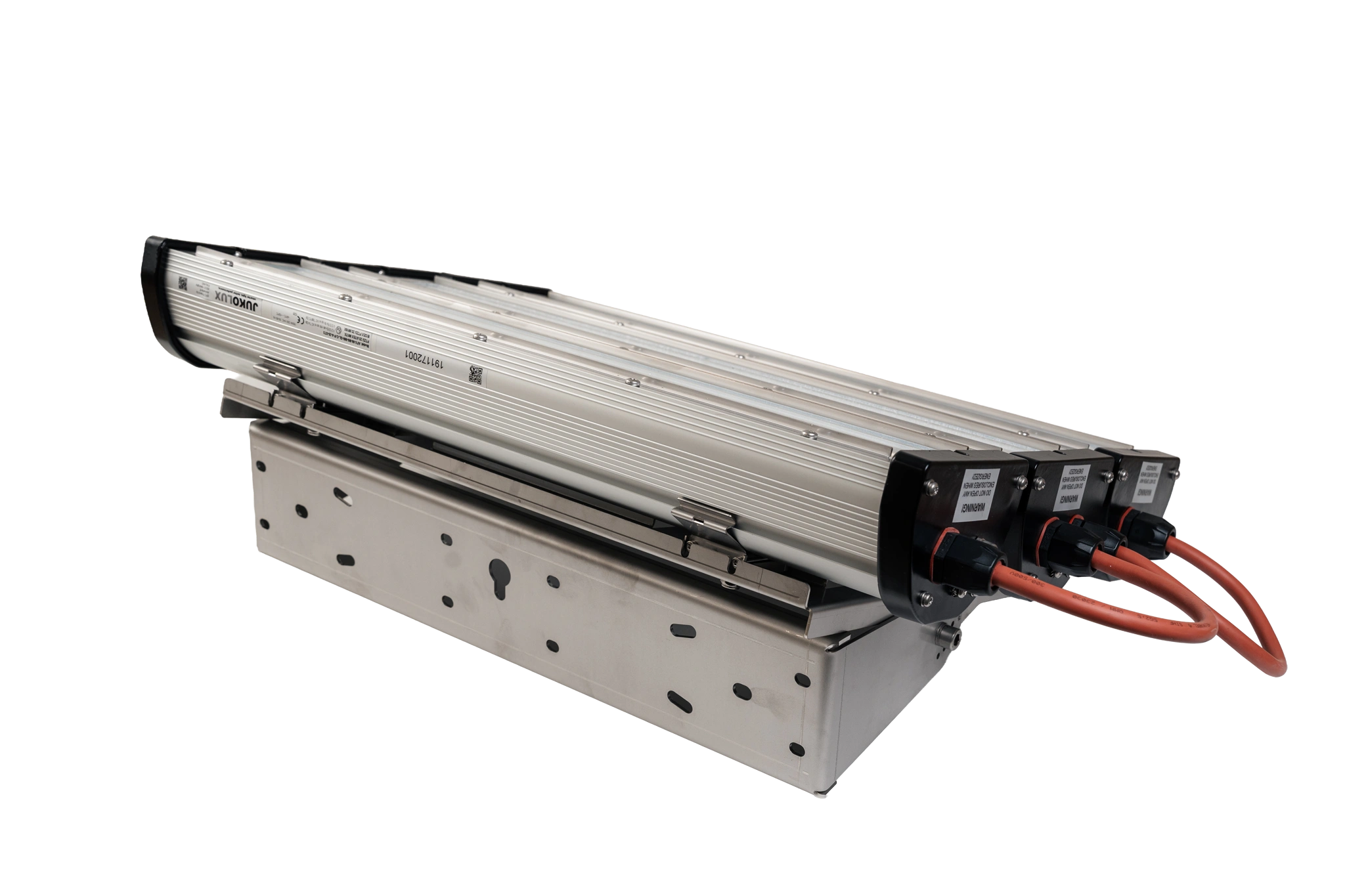

mountingWall / Ceiling / Pole

Installation adaptersOptional

AdjustabilityWith adapters

ELECTRICAL

VoltageAC

Nominal voltage230

Type of driverConstant current

power100W / 150W

LIGHT

LED TYPEHigh Power

Color temperature4000K

Cri>80

Light output lm16 000 (M4) // 24 000 (M6)

efficacy~160

Lifespan L90 (Ta 25°C)100 000 h

beam60° / 90° / 120°

coupling

Cable glandM25 (12-17mm cable)

through wiringOptional, also same end through wiring

connector / cross-sectionWAGO / 1,5 … 4 mm2
