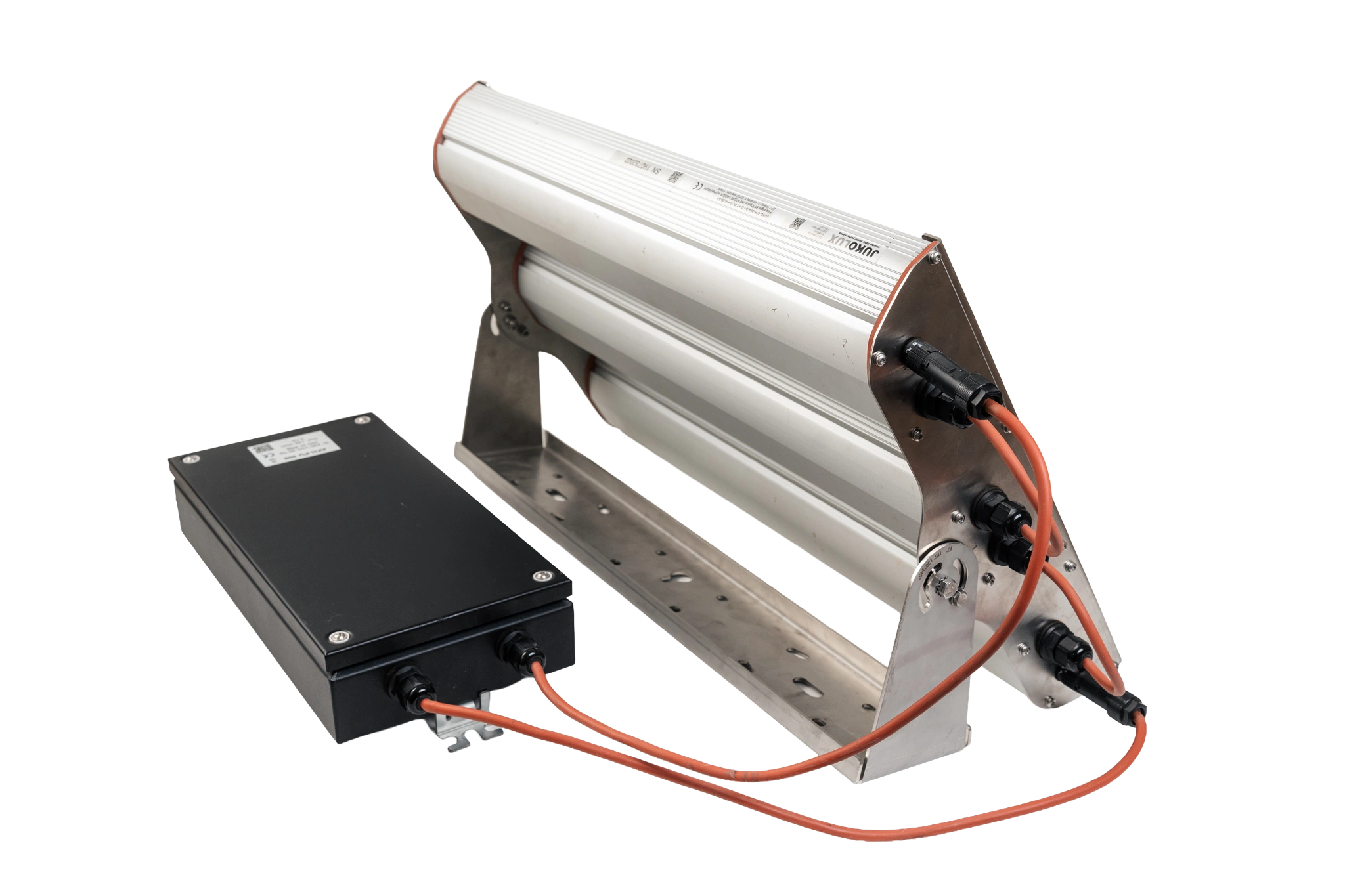

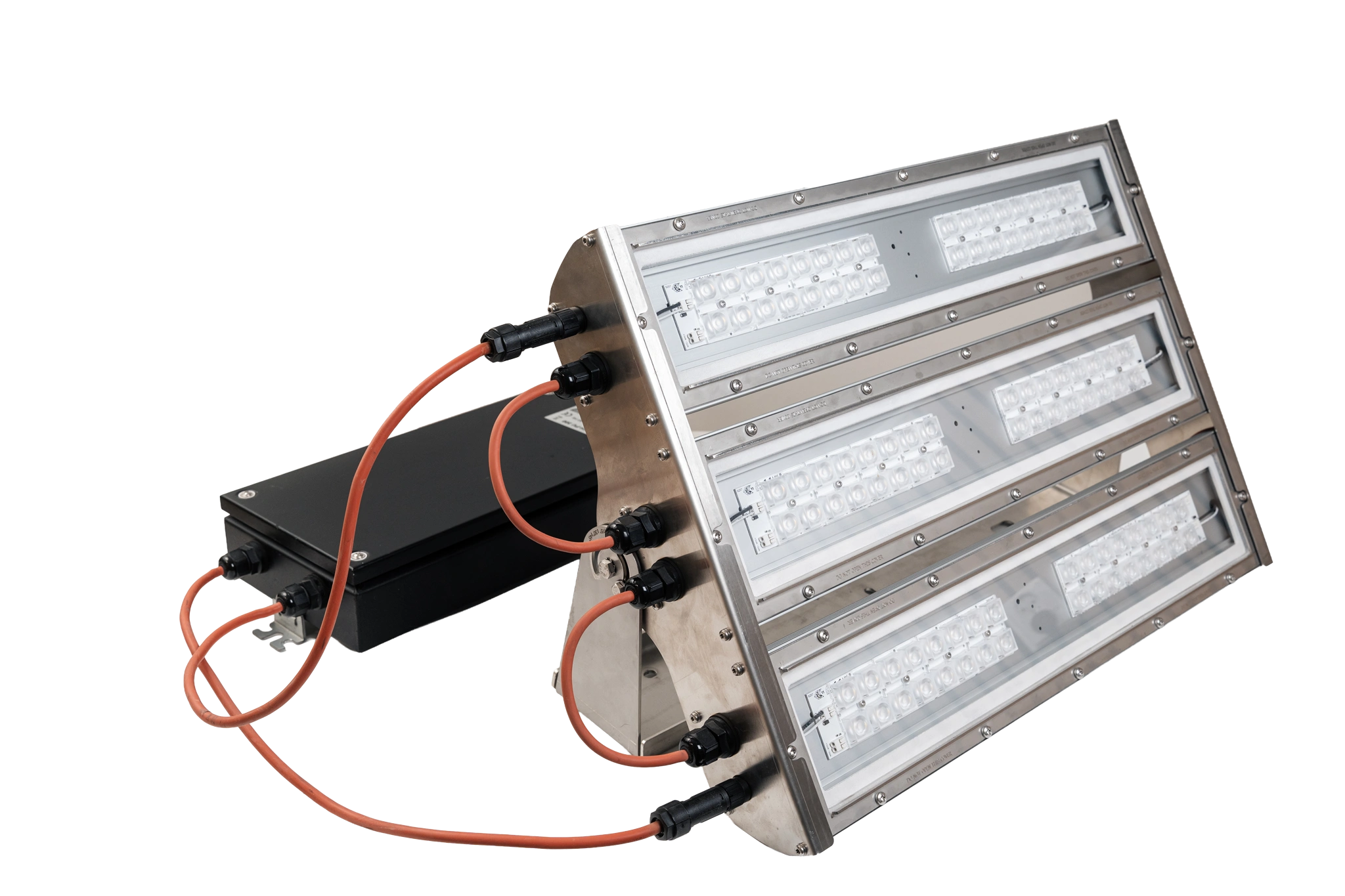

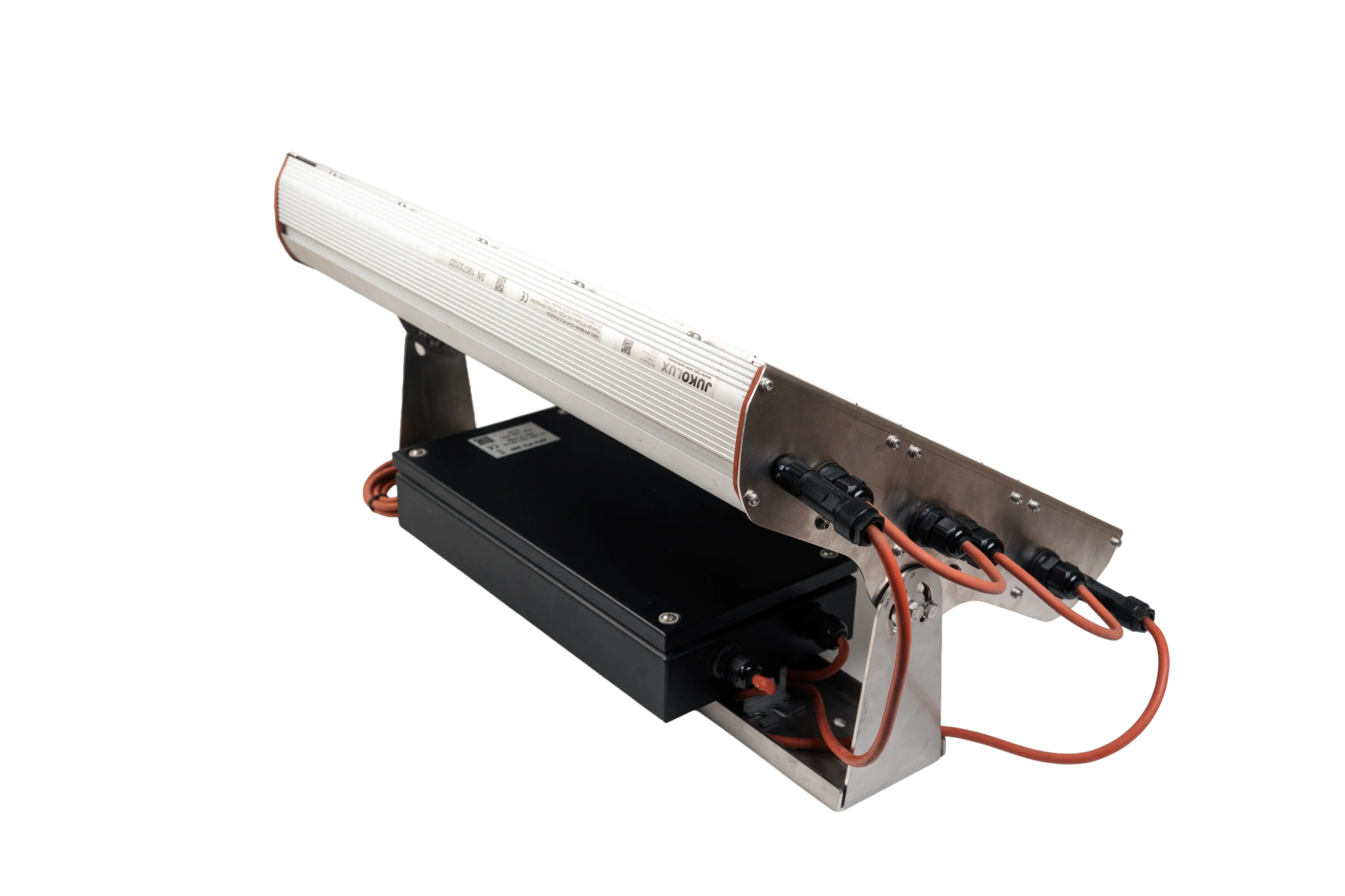

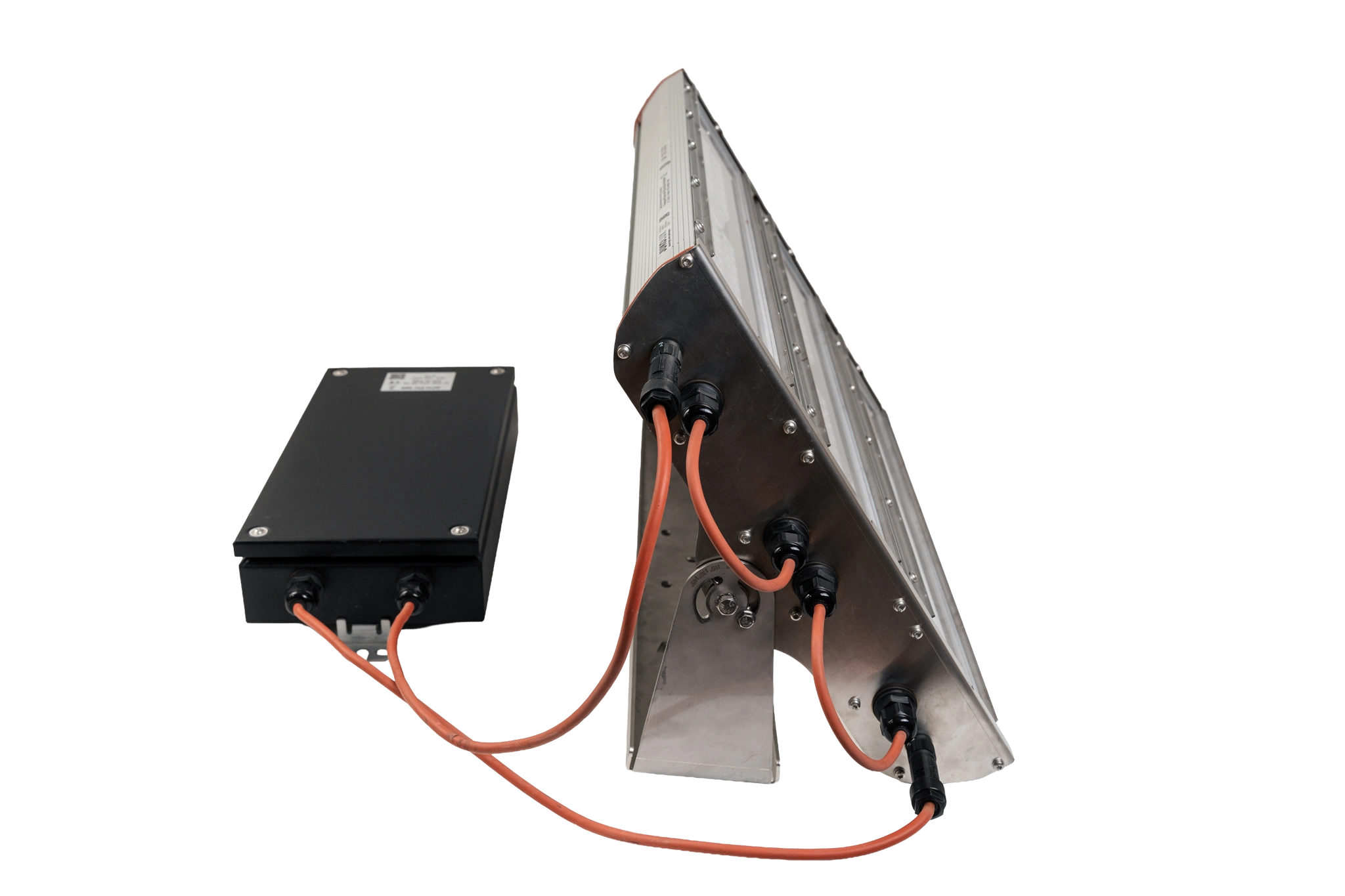

JUKO AFT

It is perfect for e.g. various production facilities in the steel industry and wood processing. The frame of the lamp is designed to effectively transfer even large heat loads away from the vicinity of the most important electronical components, offering unprecedented reliability and durability even in the most challenging conditions. Efficient heat management also guarantees a high lumen output. With the combination of light and optics, we are able to bring light down even in very high places, guaranteeing work safety and a more efficient working environment. The lamp can be used in many different environments, its operating temperature range is -40°C … +60°C

TEKNINEN DATA

Mechanical

FrameExtruded aluminum
CoverSpecial glass
OpticsPMMA
fastenersA4
Cable glandsM25
MountingCeiling / Pole
Installation adaptersOptional
Adjustability-45° … +45°
Weight16kg

Electrical

VoltageAC
Nominal voltage198 – 264V
LED DriverConstant Current
Power150 – 300W

LIGHT

LED High Power LEDs
Color temperature4000K
CRi80-89
Light output lm21 000 – 42 000
Efficacy~140
Lifespan L80 (Ta 25°C)100 000 h
Lifespan L80 (Ta 60°C)100 000 h
Beam width65° / 120°

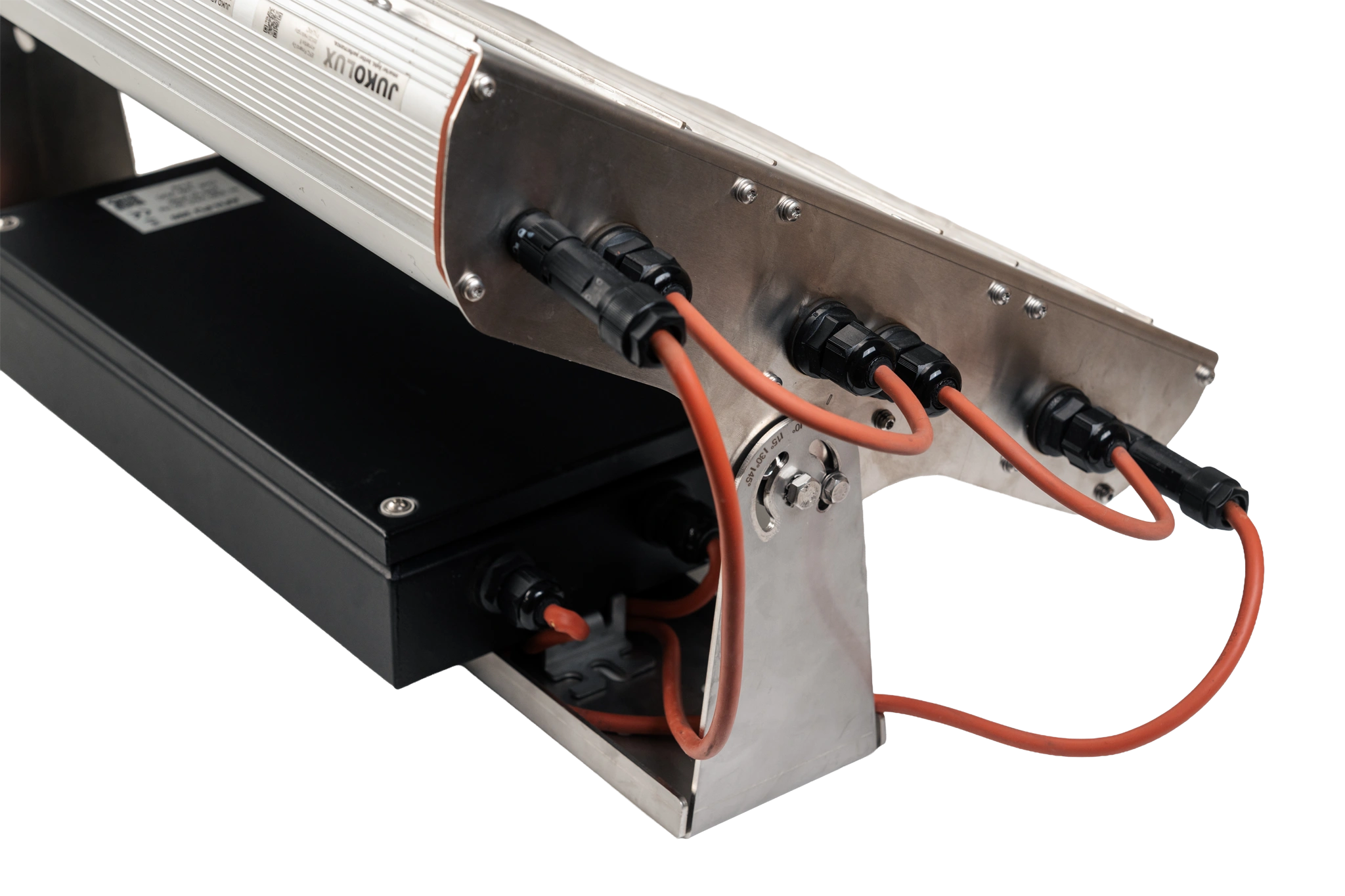

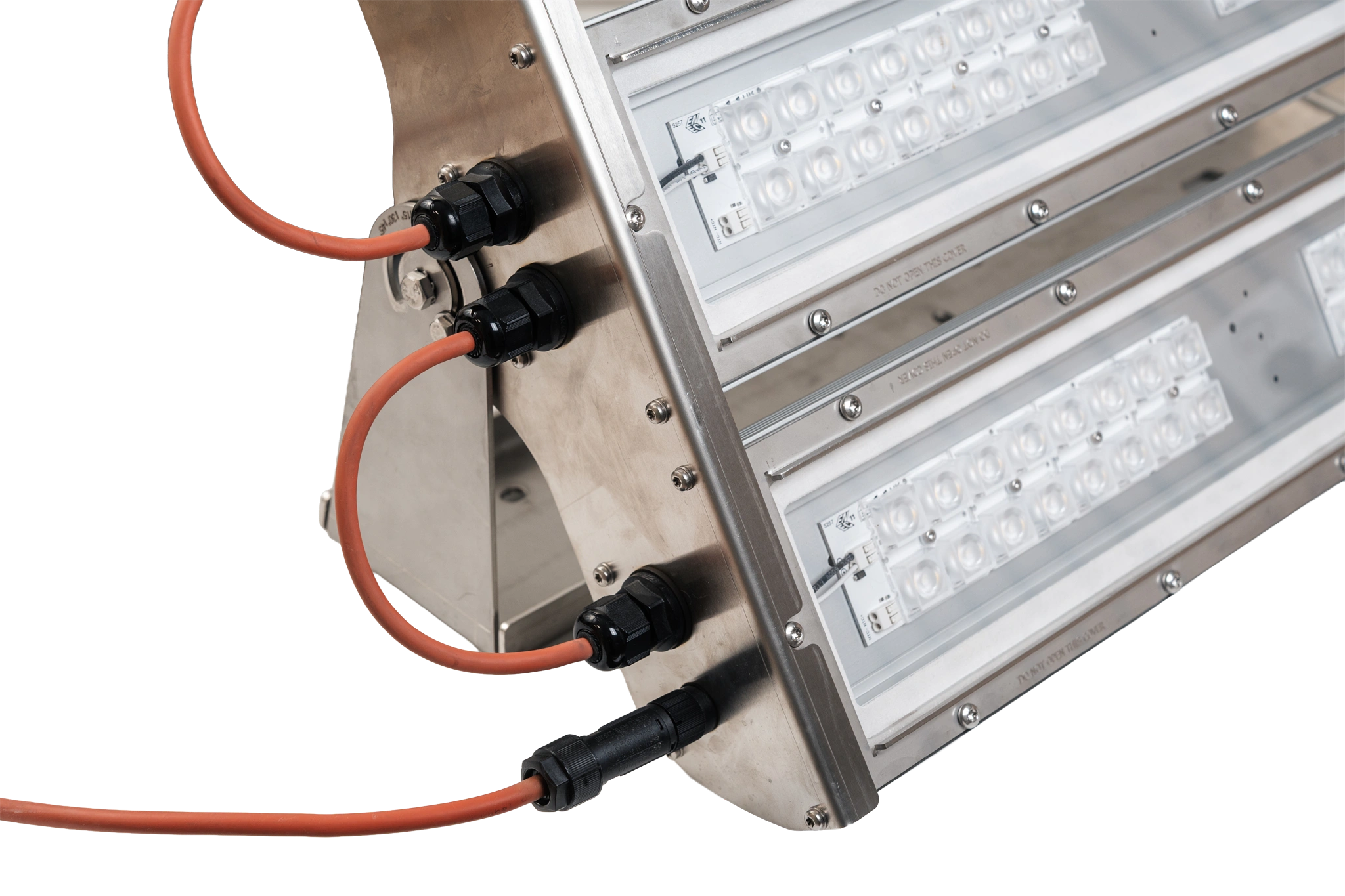

Connection

cable glandsM25 / M20
through wiringoptional, also same end through wiring
wire cross section1,5 … 4 mm2

other

IP ratingIP66 / IP67
originFinland
warranty5 years
Requires professional installationYes
IK RatingIK10
