INP320LED

LED luminaire suitable for prisons and institutions, with an extremely high IK rating (IK11+). Designed for lighting cells and corridors. Installed in the wall-to-ceiling corner. The robust and durable structure, along with special security screws, prevents unauthorized use.

DOWNLOADS

TEKNINEN DATA

Technical

Light source:LED modules
Protection:I,II,III
IP rating:IP65
CRI:> 80
Power factor:≥ 0,95
Lifespan:> 70.000h L80B10
Color temperature:4000K
Operating temperature range:-30°C … +45°C

Mechanical

Enclosure:Powder-coated galvanized steel
Light aperture:Polycarbonate

Mounting

Mounting:Wall or ceiling installation

Power supply

Power supply230V, 0/50-60Hz, terminal block 2.5 mm² || 24V DC

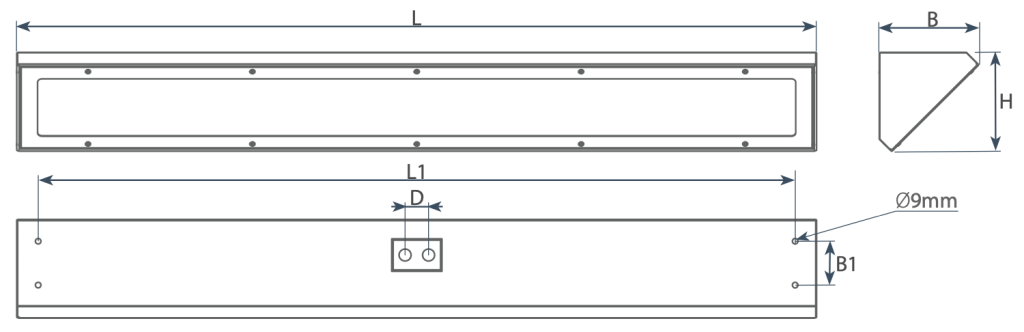

DIMENSIONS

DRAWING

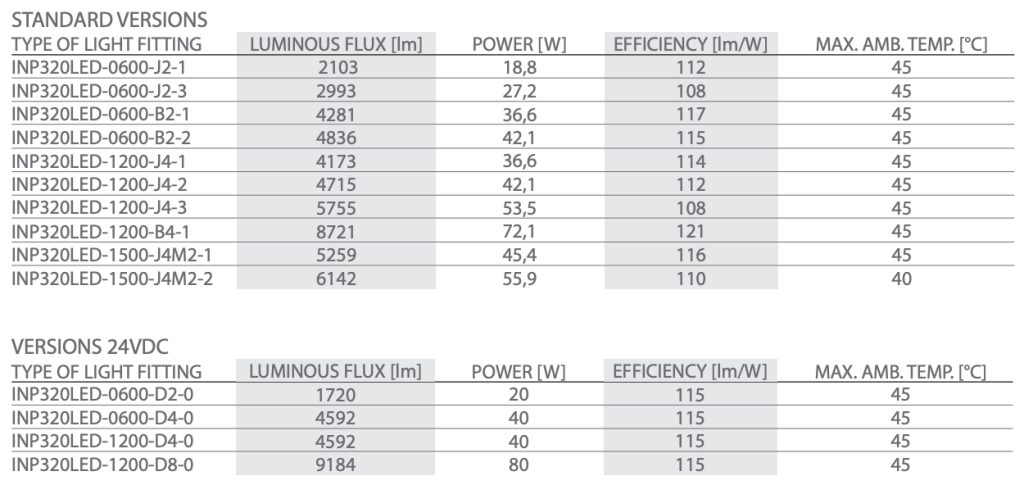

TYPE COMPARASION

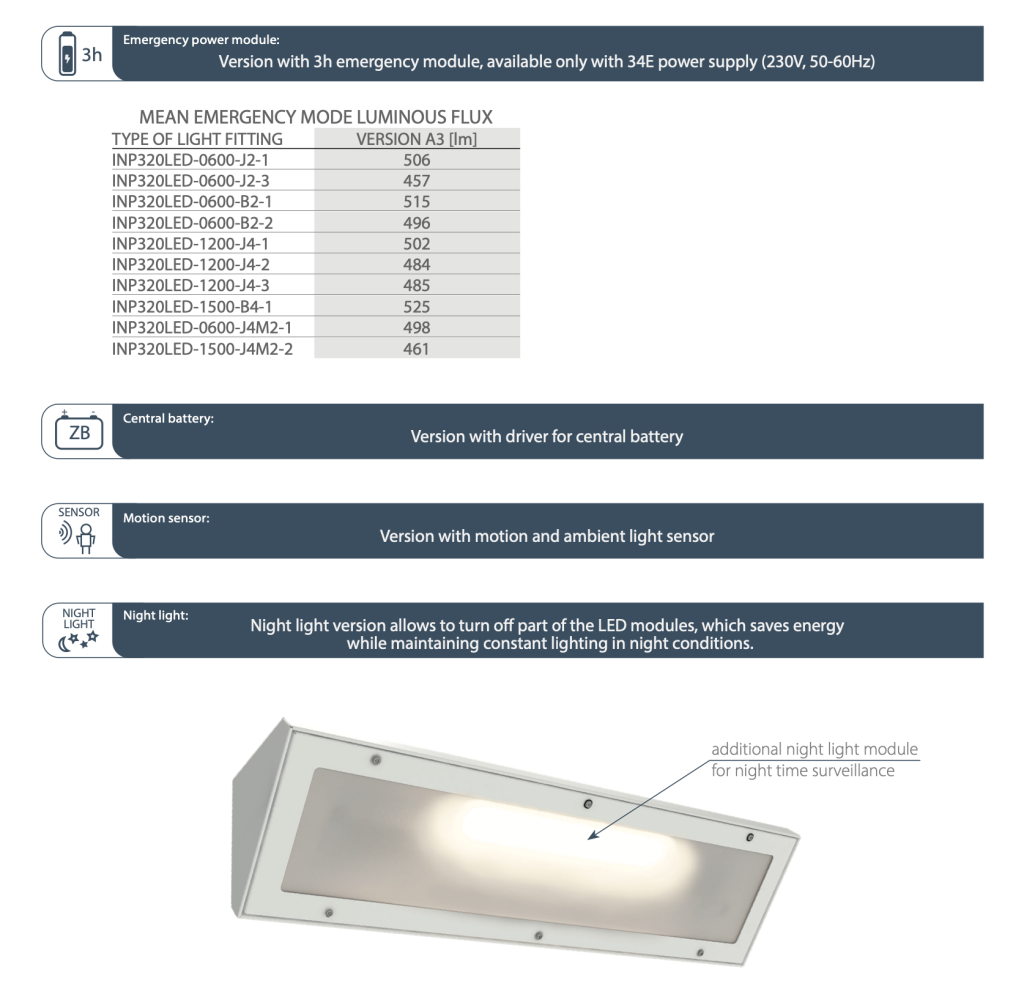

ALTERNATIVE VERSIONS

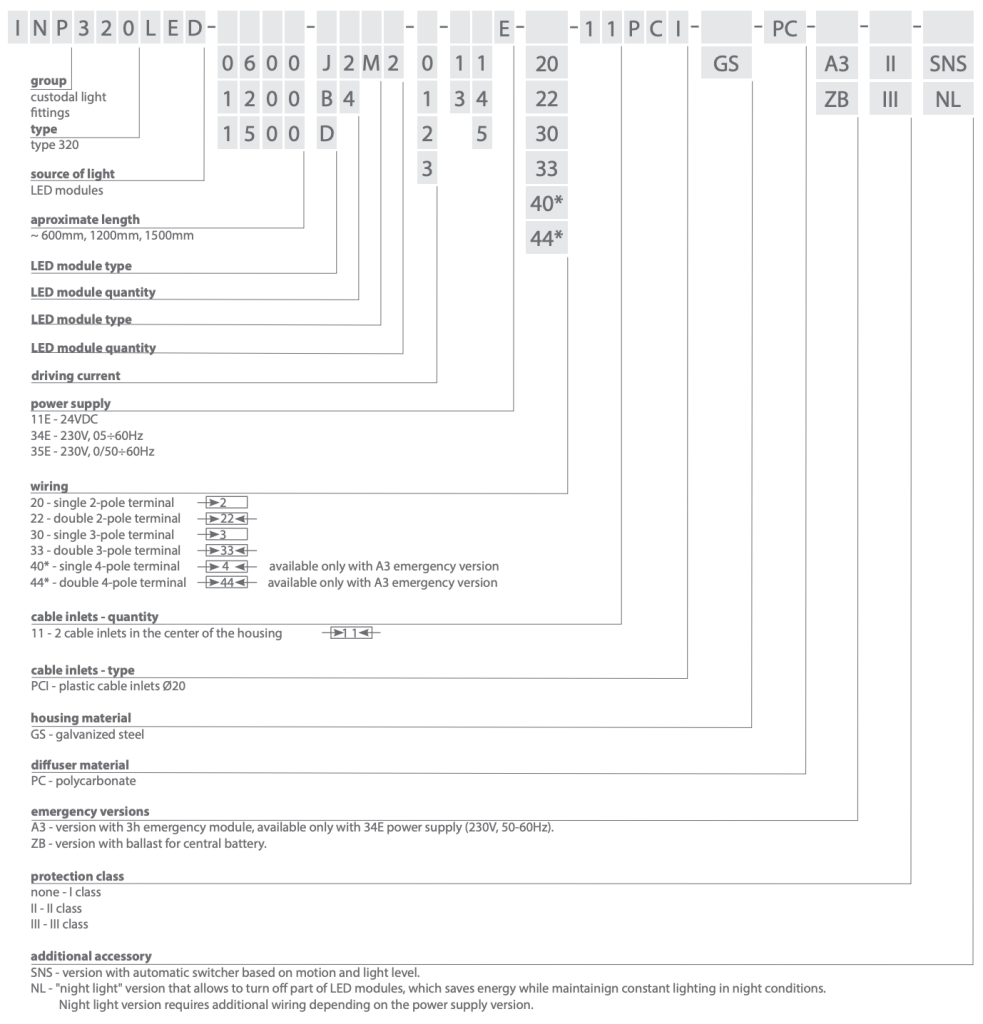

CONFIGURATIONS
