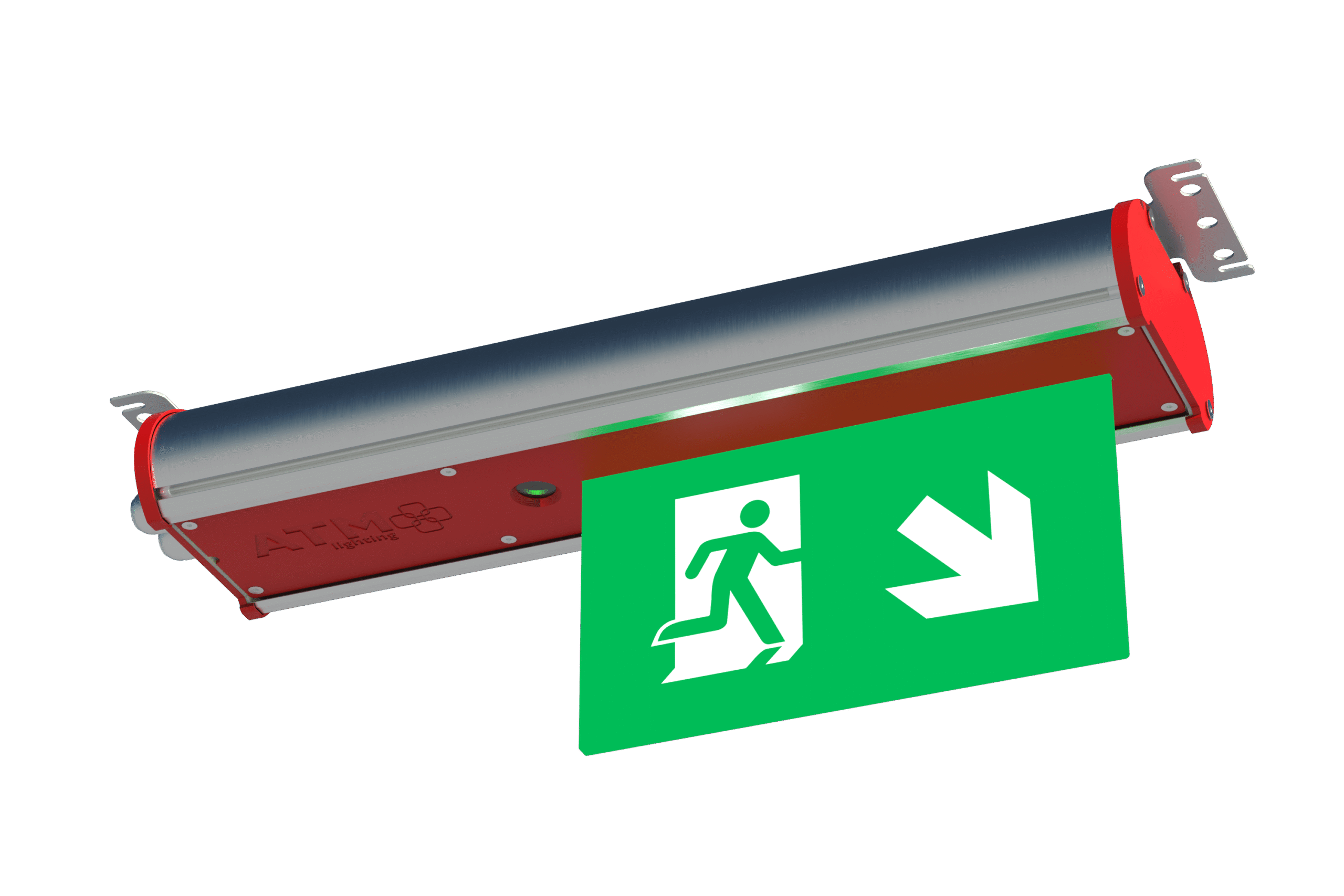

EXL400LED-EXIT

EXL400LED-EXIT

Explosionproof light fitting with LED modules. Designed to work in the zone 21 & 2.22 of the explosion hazard of gases, vapors and mists of flammable liquids with air, as well as of flammable dusts and fibers. The housing is made of aluminum. Standard antonomous 3h power source.

No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption

TECHNICAL DATA

Electrical

Connection terminals: 2,5 mm2
Input voltage: 220-240V 50-60Hz
Light source:certified LED modules
CRI:> 80
Power factor:>0,95
lifespan:>>70 000 hours L80B10
color temperature:4000K
Operating temperature range:-40°C … +45°C (see model variations)

Mechanical

Frame:Anodized aluminum
Light aperture:Polycarbonate
End caps:Powder-coated galvanized steel
Ingress protection:IP66/IP67
Protection class:I

Mounting

Mounting:Mounting with various mounting brackets

Power supply

Power supply220-240V 50-60Hz

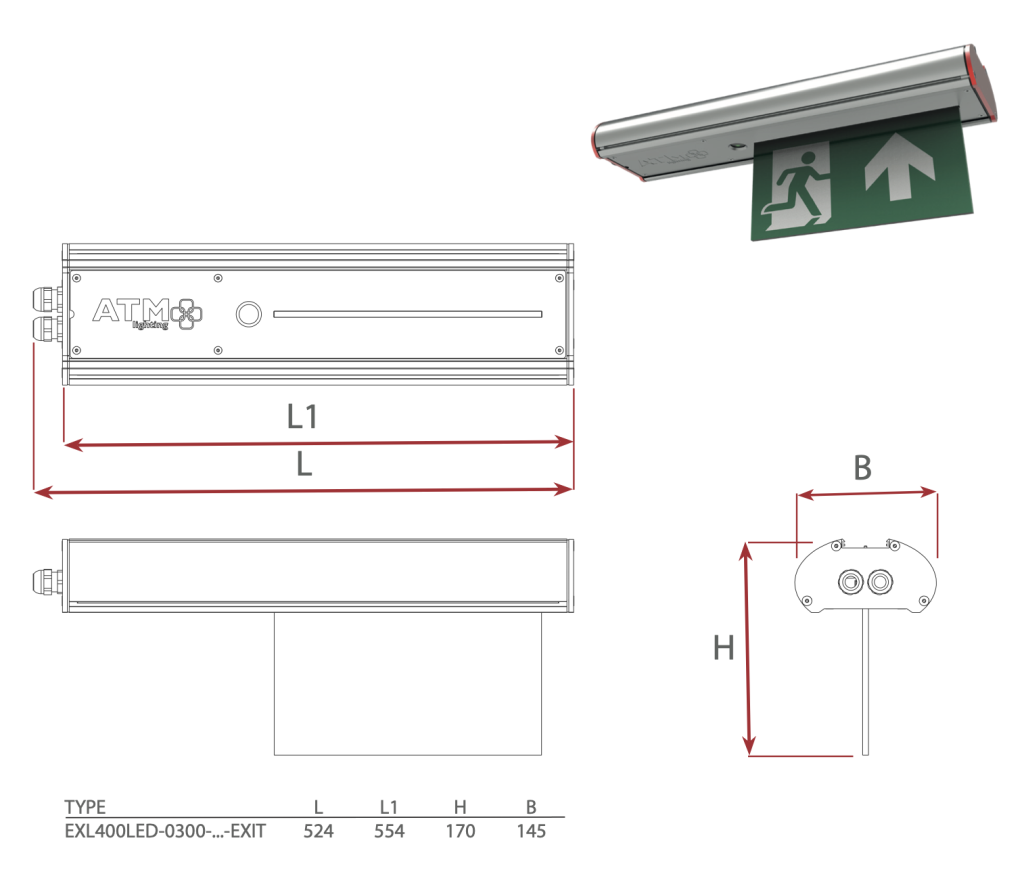

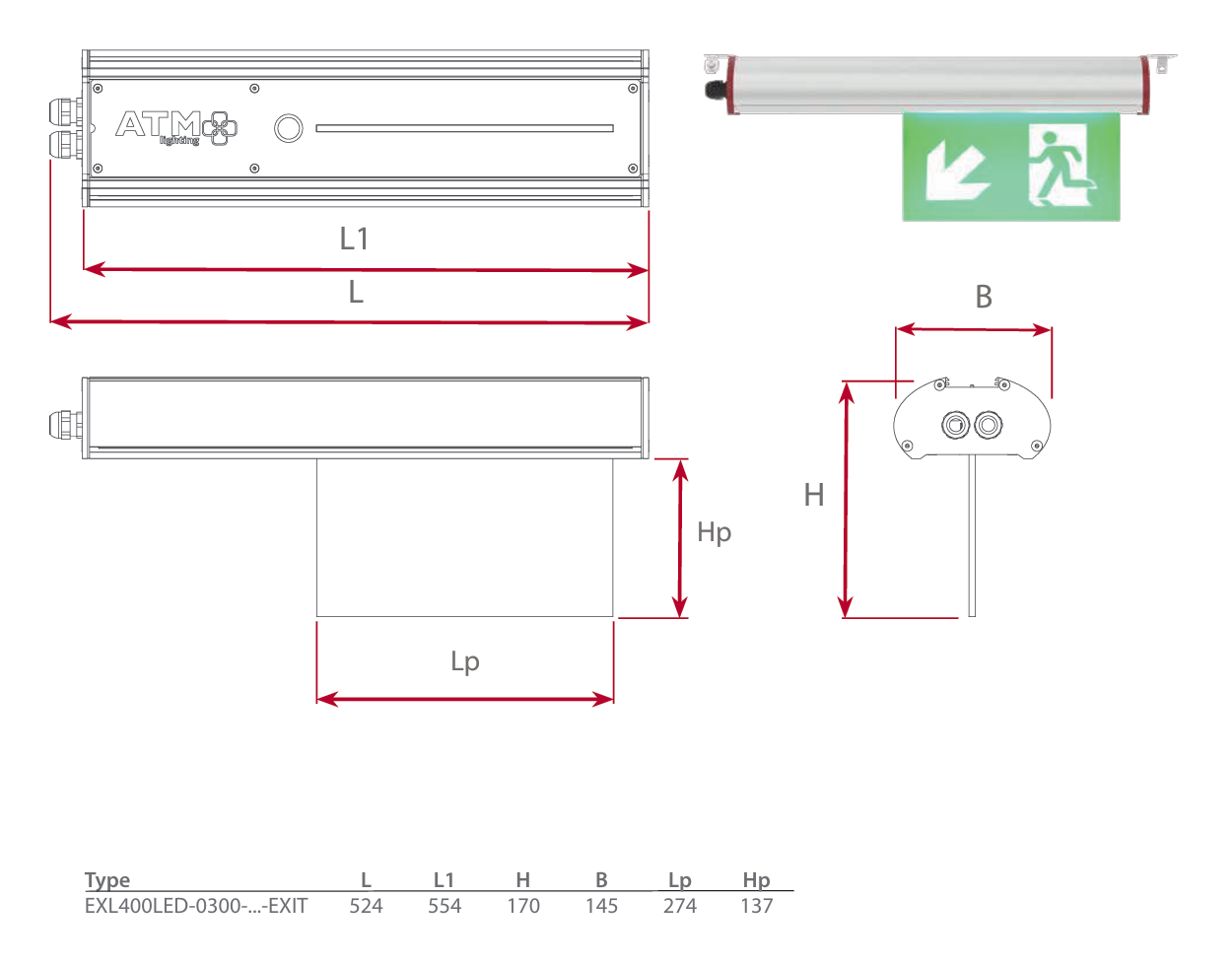

DIMENSIONS

PICTOGRAMS

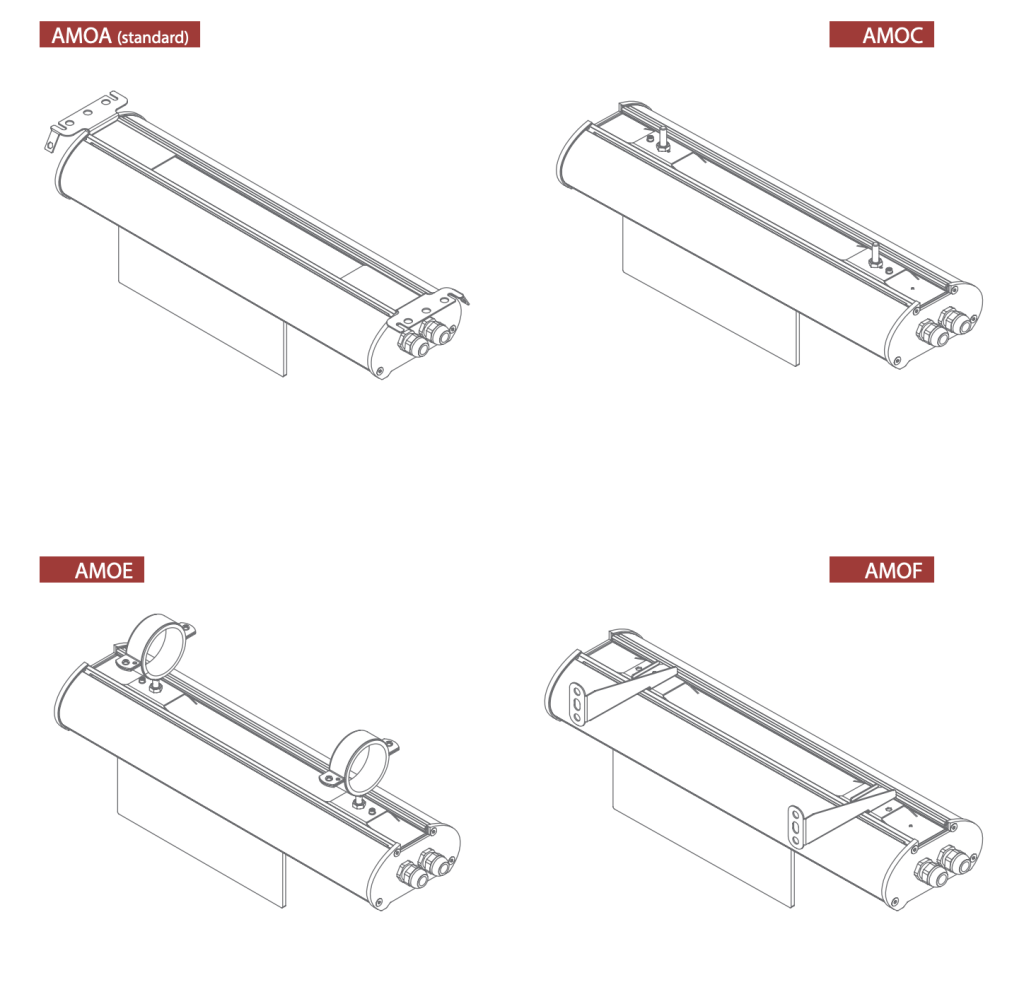

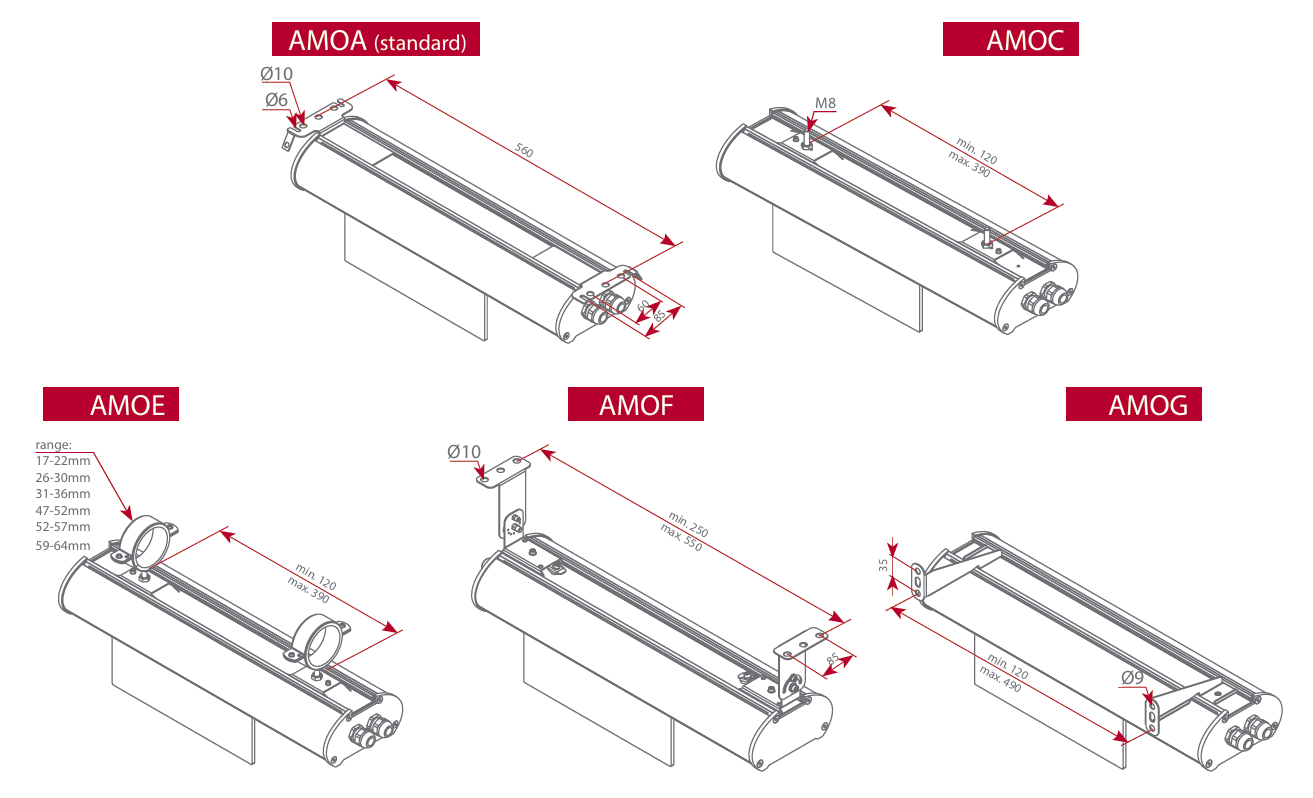

MOUNTING OPTIONS

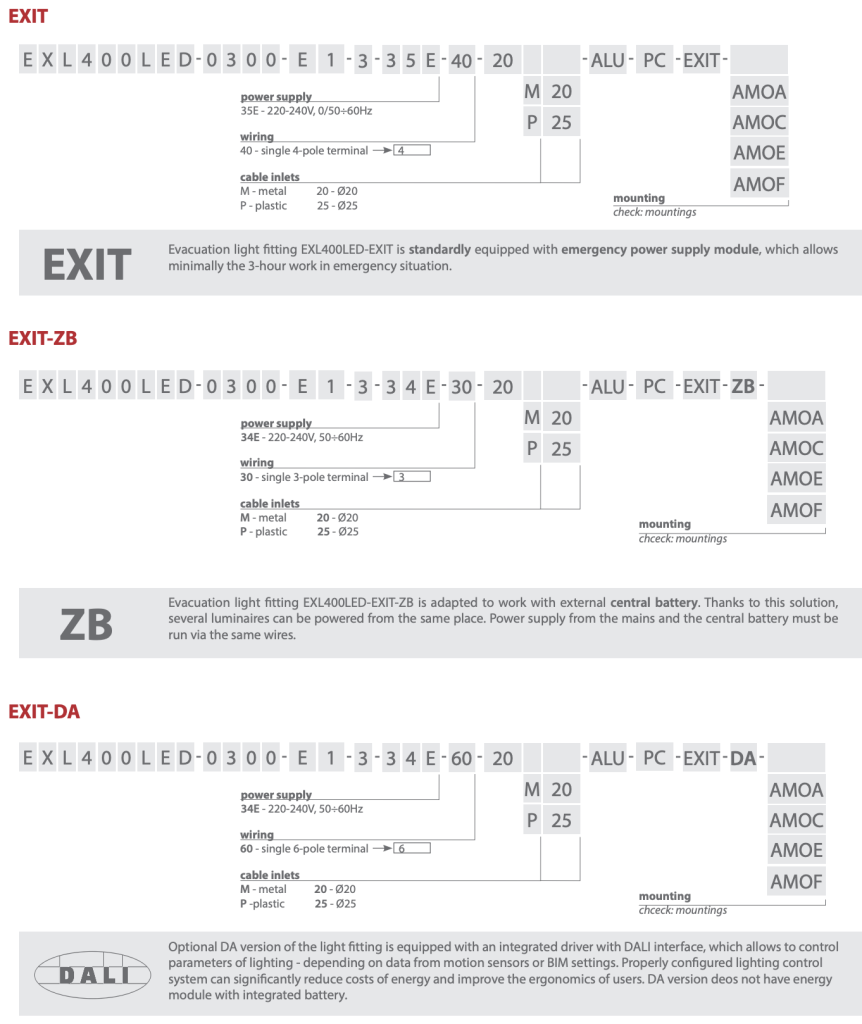

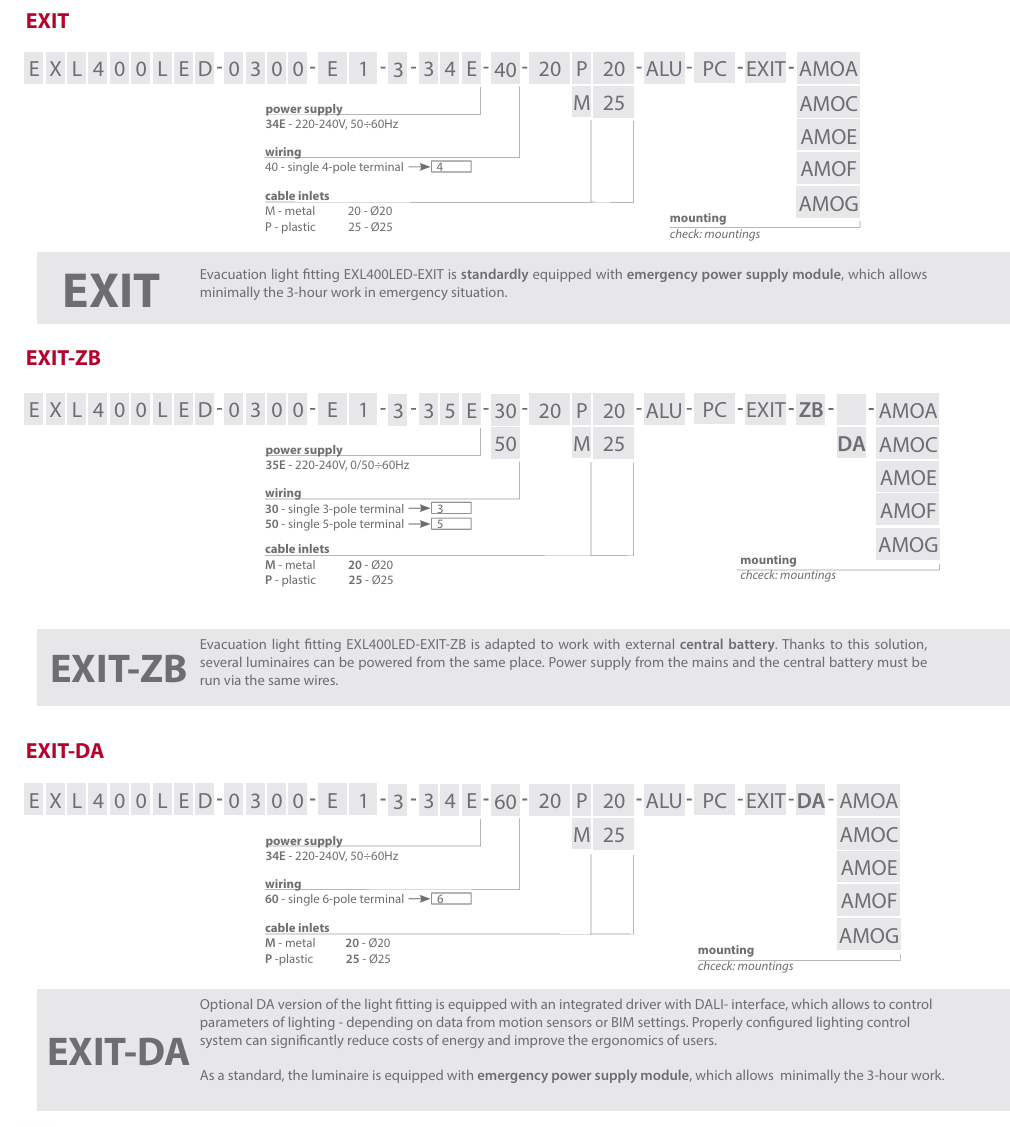

CONFIGURATIONS
