EXL400LED

EXL400LED

Explosion-proof luminaire with LED modules. Designed for use in zones 21&2, 22, and 24, where there is a risk of explosion of gases, vapors, and mists of flammable liquids with air, as well as flammable dust and fibers. The housing is made of anodized aluminum, and the diffuser is made of tempered glass, polycarbonate, or PMMA. Optional versions are available with an A3 standalone power source, compatibility with a ZB central battery, or a DALI control system. The luminaire is OBAC 21 ATEX 0060X certified and has CNBOP approval number 5061/2023.

No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption

TECHNICAL DATA

Technical

Color temperature:4000K, 6500K
CRI:>80, >90
Pictogram brightness:>200 cd/m²
Luminaire lifespan:>70,000 L₈₀B₁₀, >100,000 L₇₀B₁₀
Operating temperature range:depending on the version from min. -40 °C up to max. +60 °C
Mounting:Mounting with various mounting brackets

Mechanical

Frame:Anodized aluminum
Diffuser:tempered glass (GL), polycarbonate (PC), polimethyl methacrylate (PM)
Ingress protection:IP66/IP67
Protection class:I
Light aperture:Polycarbonate
End caps:Powder-coated galvanized steel

Electrical

Power supply 35E:220-240V 50-60Hz, 220-240V 0Hz
Power supply 34E:220-240V 50-60Hz
Power supply 11E:24V 0Hz
Light source:LED modules
Power factor:>0,97
Surge protection:35E: 1kV (LN), 2kV (L-PE) 4kV – optional (not available for 0300) | 34E: 1kV (LN), 2kV (L-PE)
Connection terminals:2,5 mm²

DIMENSIONS

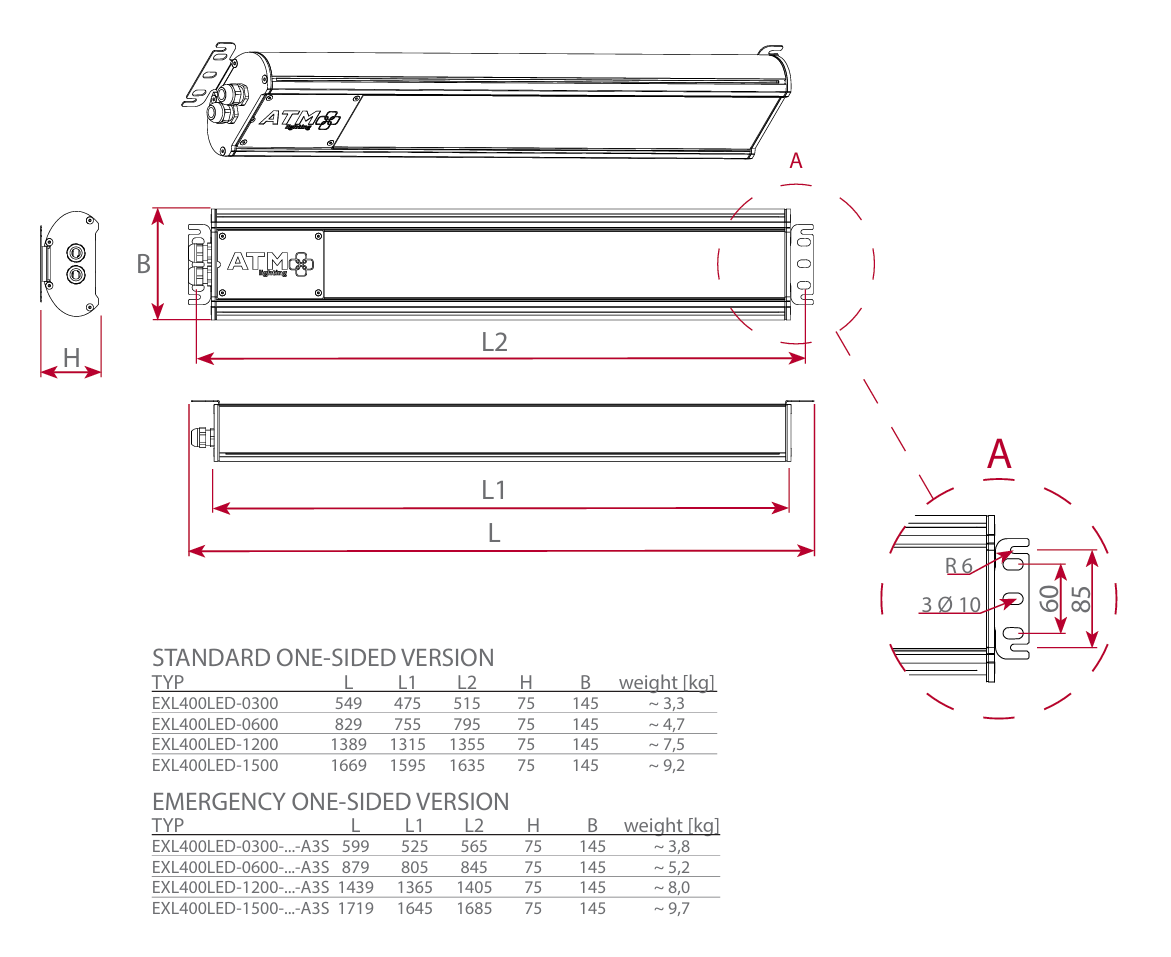

One-sided version

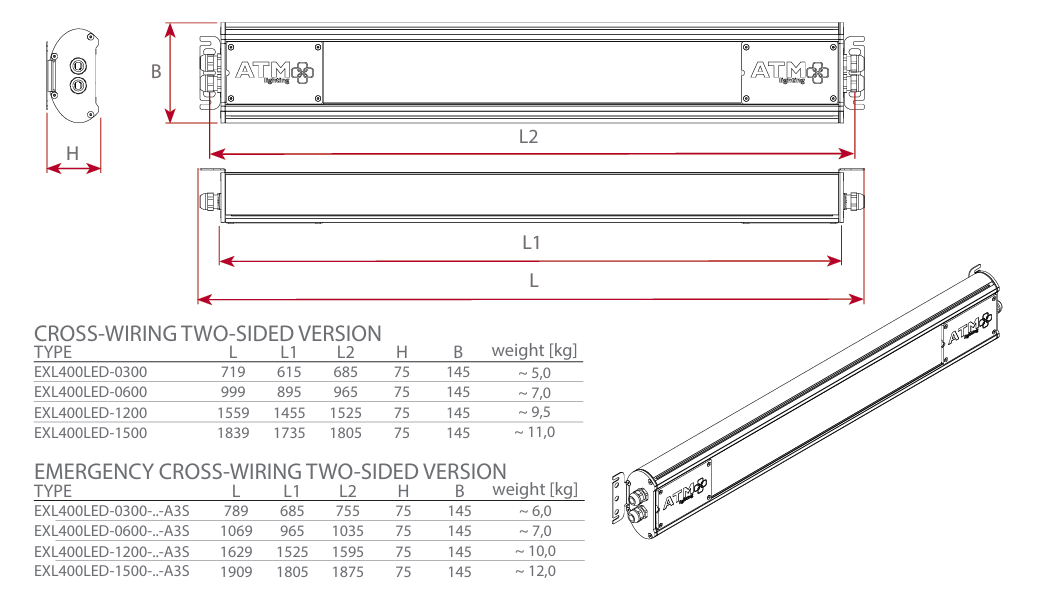

Two-sided version

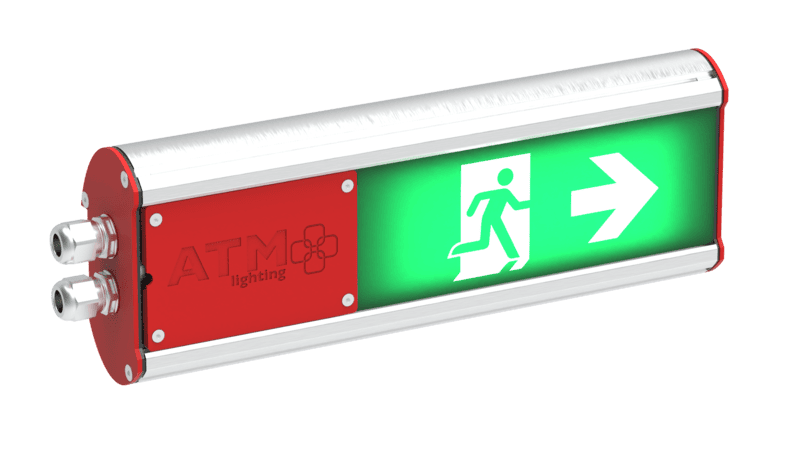

Pictograms

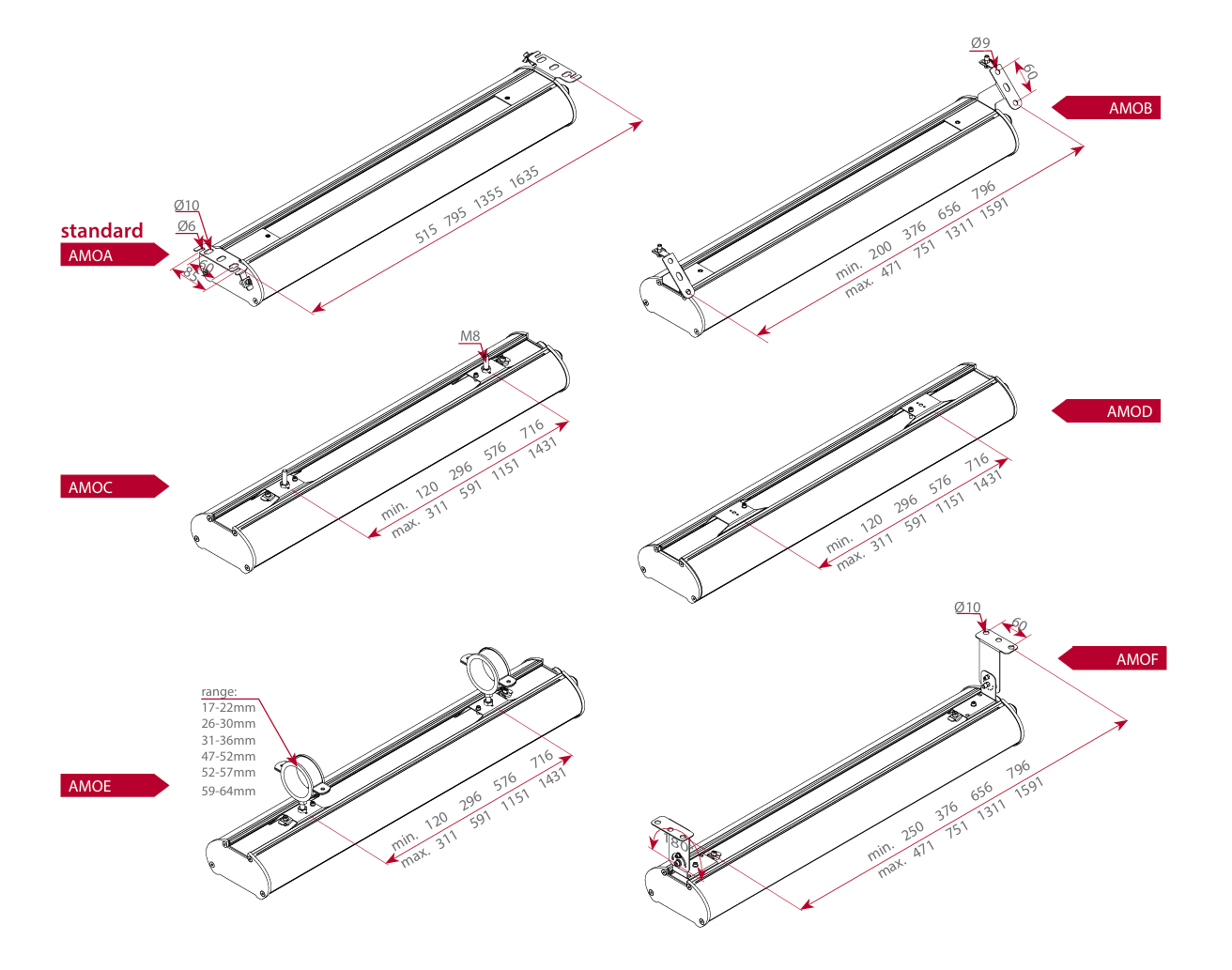

MOUNTING OPTIONS

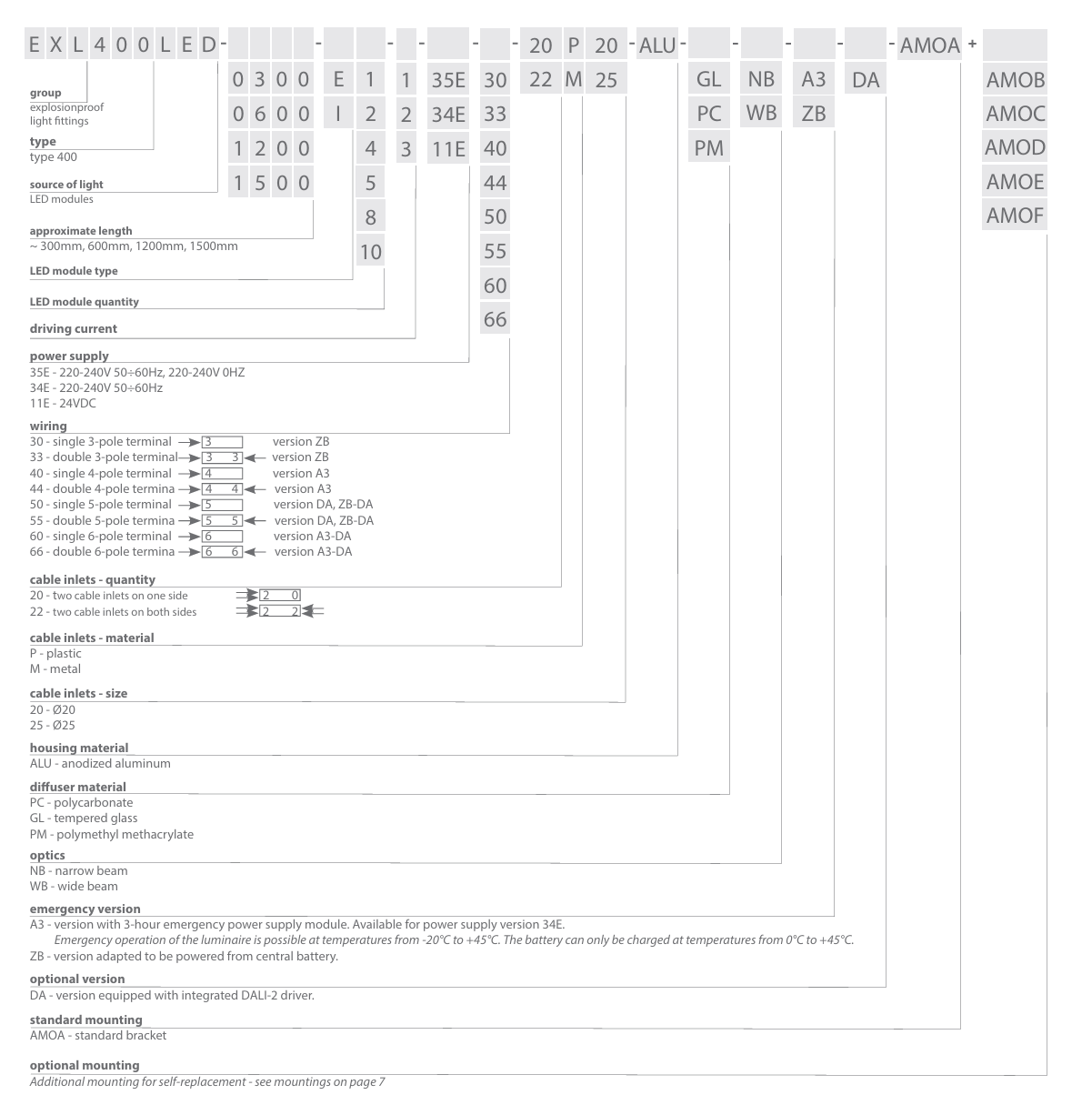

CONFIGURATIONS

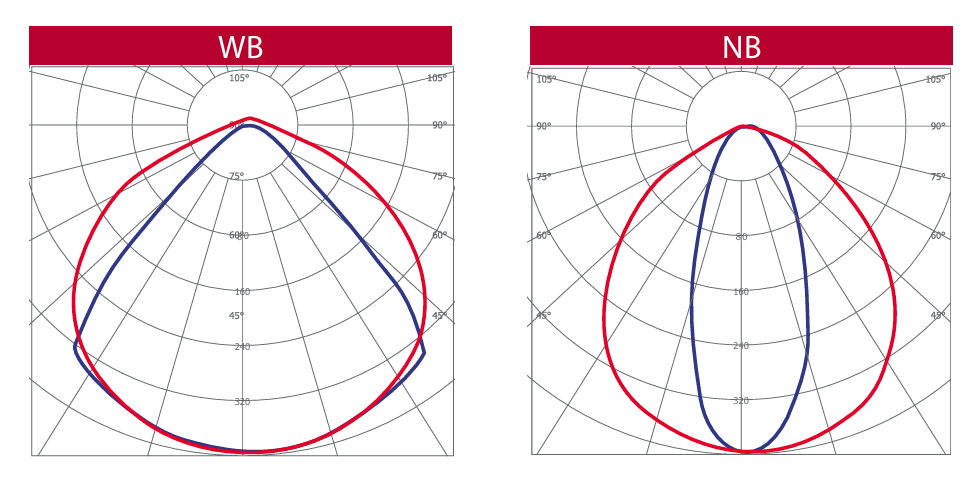

PHOTOMETRY
