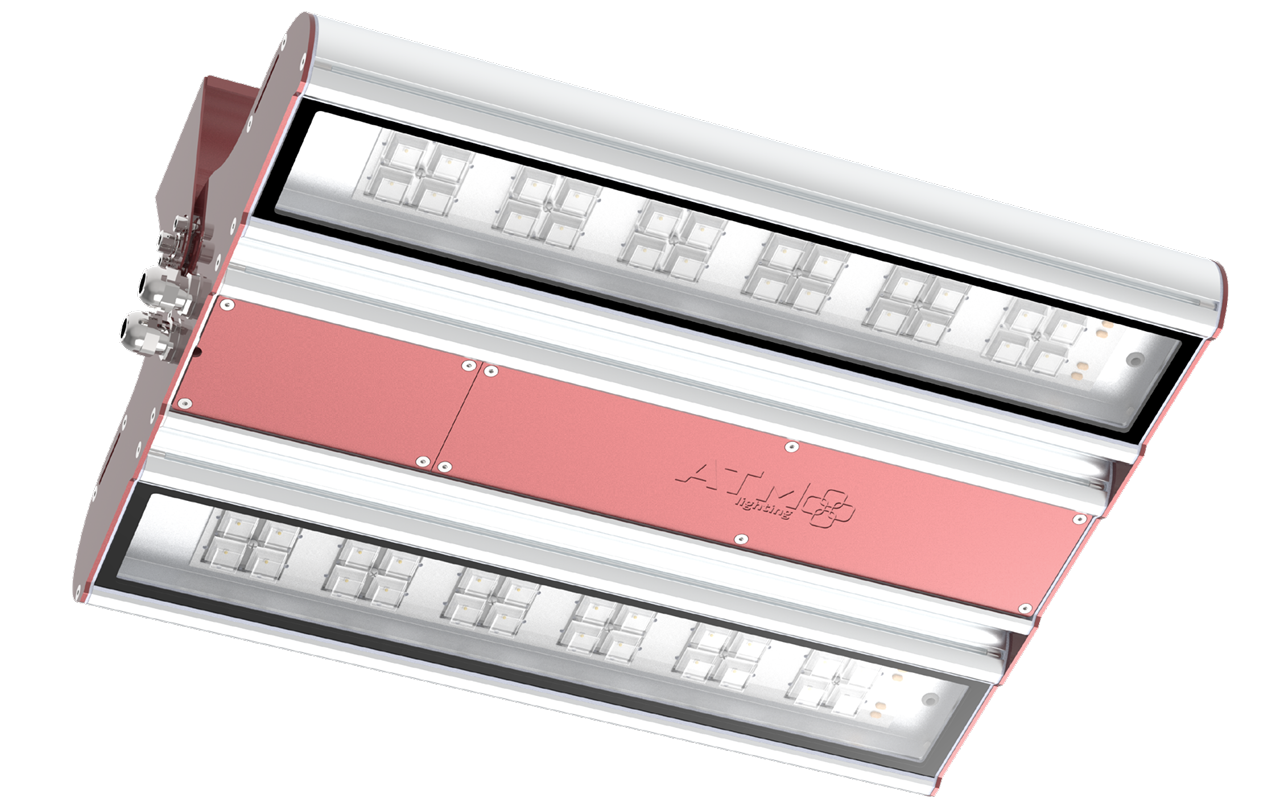

EXF450LED

Explosion-proof LED floodlight designed for hazardous areas. Suitable for use in zones 21 and 2,22. The frame is made of aluminum, and the light aperture material is either polycarbonate or tempered glass. Optional versions are also available, including DALI or battery-backed options.

TEKNINEN DATA

Technical

Light source:"Intrinsically safe" LED modules
Protection:IP66/67
CRI:>70 (> 80)
Power factor:≥ 0,98
Lifespan:>50 000h L80B10
Color temperature:4000K (6500K option)
Operating temperature range:-40°C … even +65°C, see versions

Mechanical

Frame:Anodized aluminum
Light aperture:Tempered glass, PC
Mounting rail:Powder-coated galvanized steel

Mounting

Mounting:Various mounting options and brackets

Power supply

Power supply 24E100-277V, 50/60Hz
Power supply 35E230-305V, 50/60Hz + 230-431V, 0Hz

DIMENSIONS

VERSION EX2

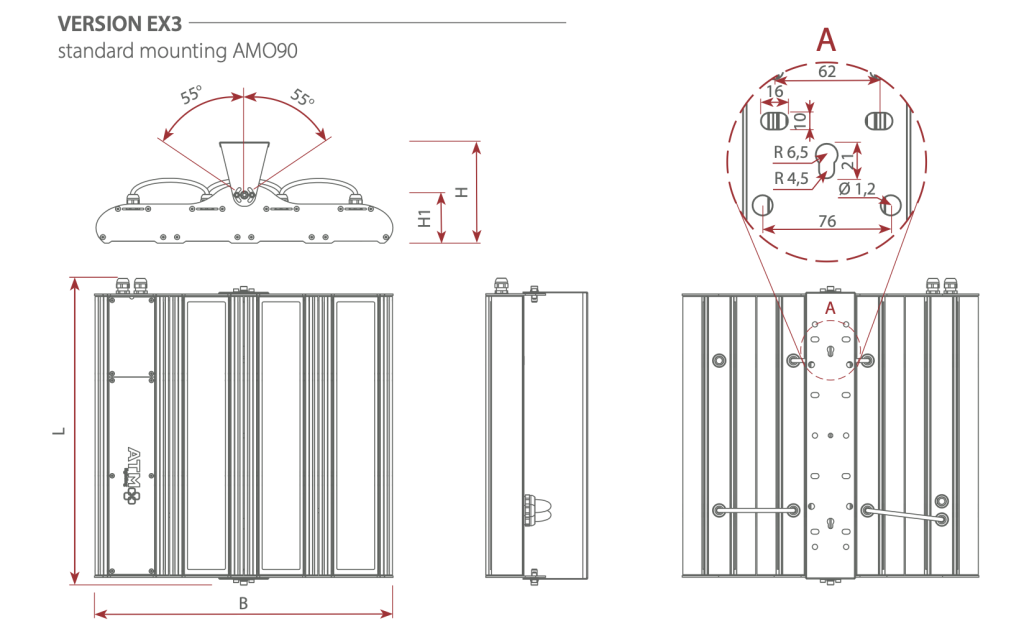

VERSION EX3

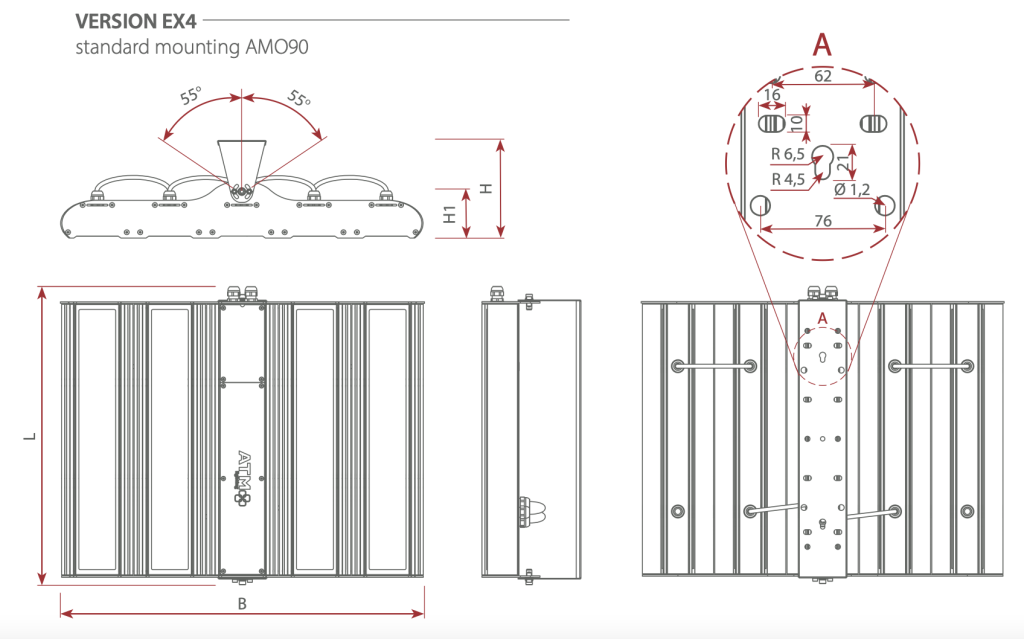

VERSION EX4

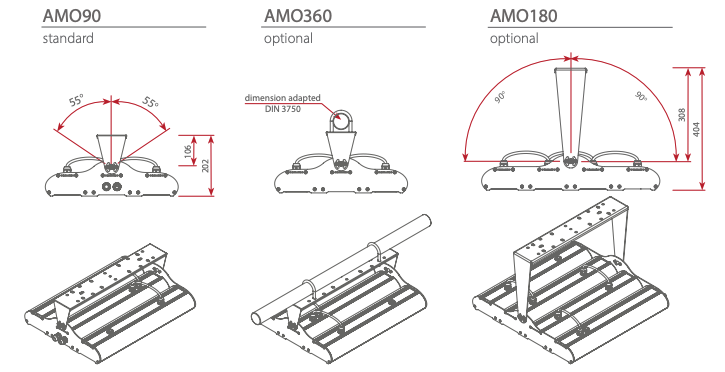

MOUNTING OPTIONS

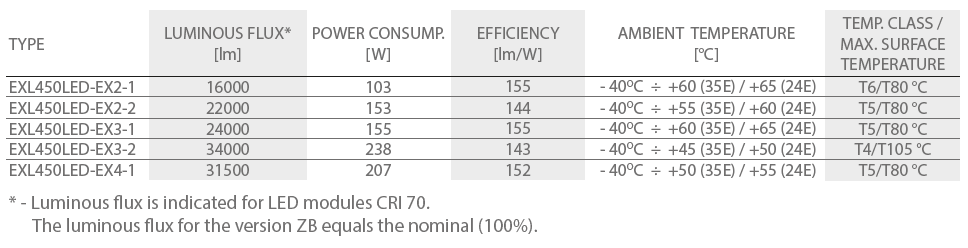

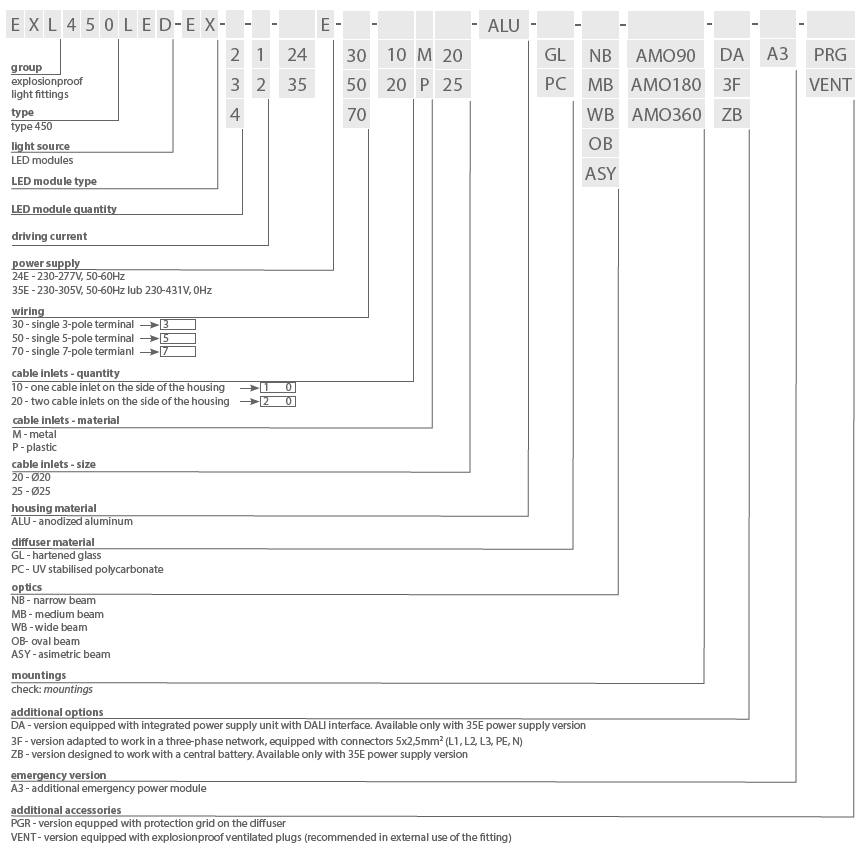

CONFIGURATIONS

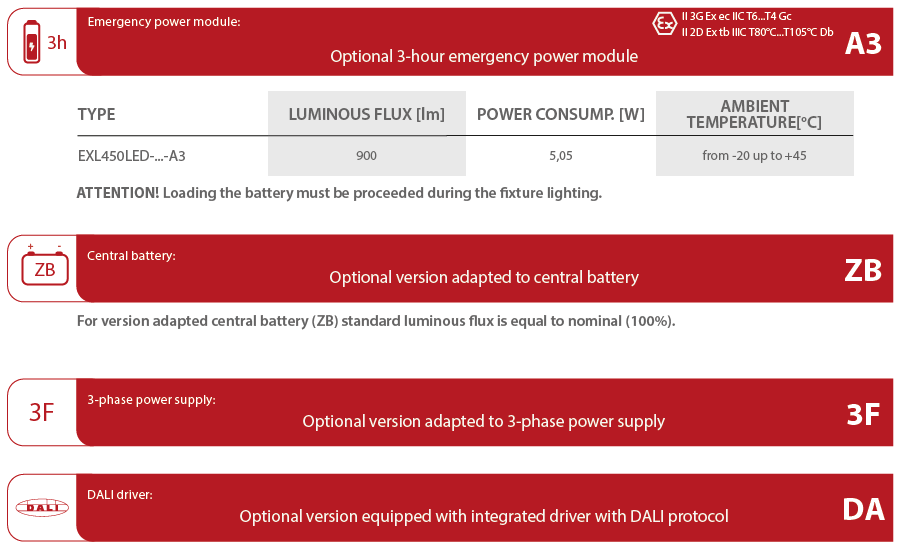

OPTIONS

CONFIGURATIONS
