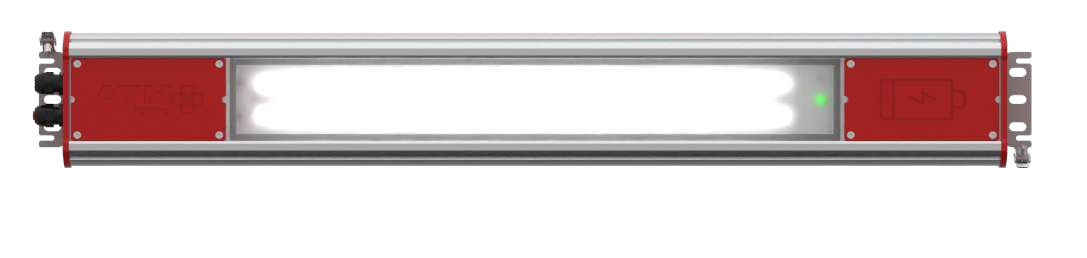

EXF400LED-A3

Explosion-proof luminaire with an emergency power module A3 or A1. Designed to work in the zone 1.21 & 2.22 of the explosion hazard of gases, vapors and mists of flammable liquids with air, as well as of flammable dusts and fibers. The housing is made of aluminum and the diffuser is made of polycarbonate or tempered glass. Bracket made of stainless steel.

Optional version with DALI-2 control system DA, or adapted to be powered from a 3-phase network 3F.

TECHNICAL DATA

Technical

Color temperature:4000K, 6500K optionally
CRI:>84
Pictogram brightness:>200 cd/m²
Luminaire lifespan:>85,000 L₈₀B₁₀, >100,000 L₇₀B₁₀
Operating temperature range:From -20°C to +45 °C
Mounting:Mounting with various mounting brackets

Mechanical

Housing:Anodized aluminum
Diffuser:Tempered glass, polycarbonate
Ingress protection:IP66, IP67
Protection class:I
Accessability:Revision cover

Electrical

Power supply 34E:220-240V 50-60Hz
Power supply 44E:110-127V 50-60Hz
Connection terminals2.5 mm², 4.0 mm² – optionally
Light sourceIntrisically safe LED modules
Power factor>0,96 FC1 – below the value
Cable inletsØ20 (wire 6-13mm) Ø25 – option (wire 9-17mm)
Overvoltage protection1kV (LN), 2kV (L-PE)

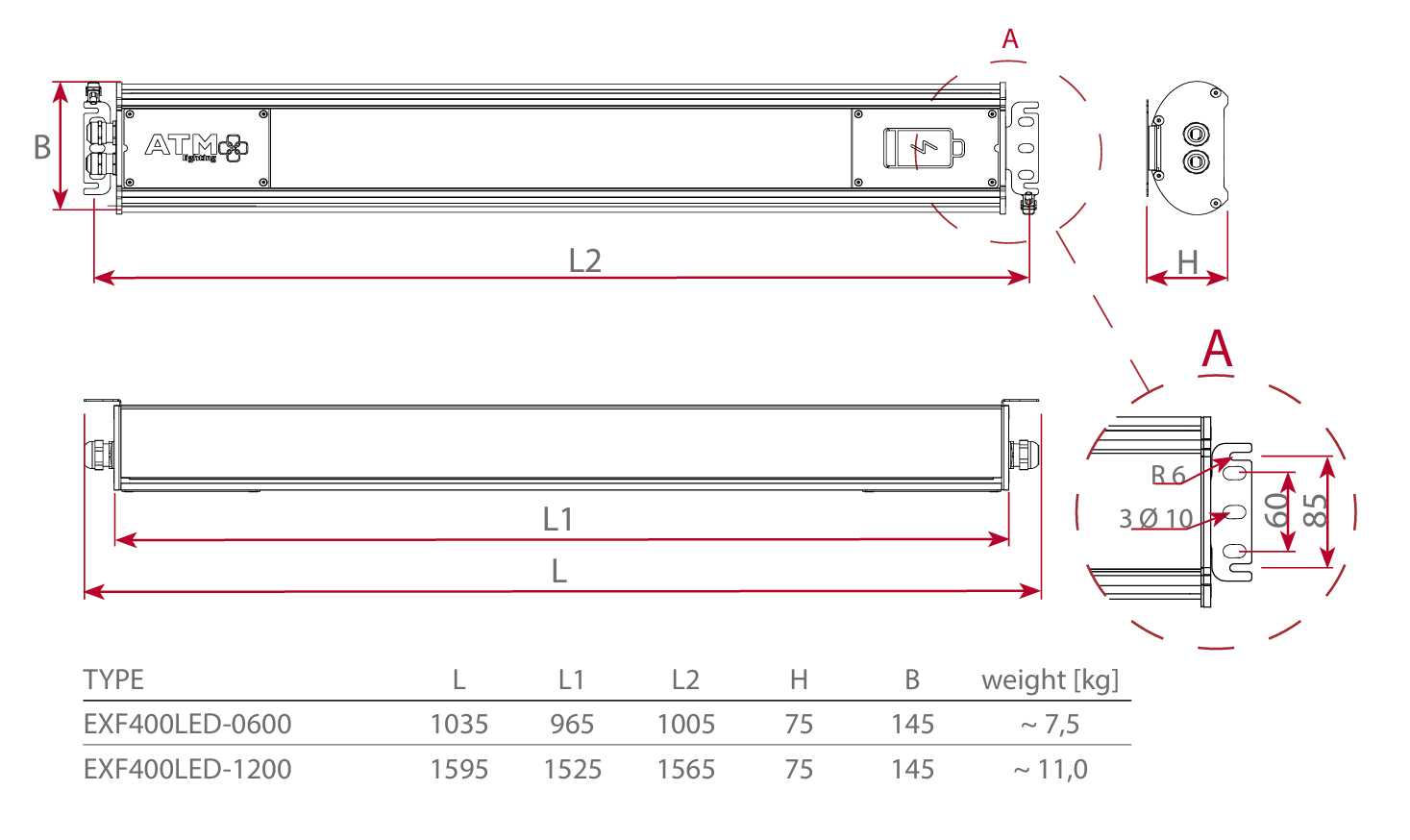

DIMENSIONS

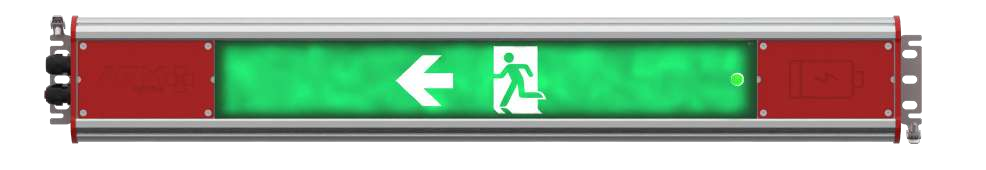

PICTOGRAMS

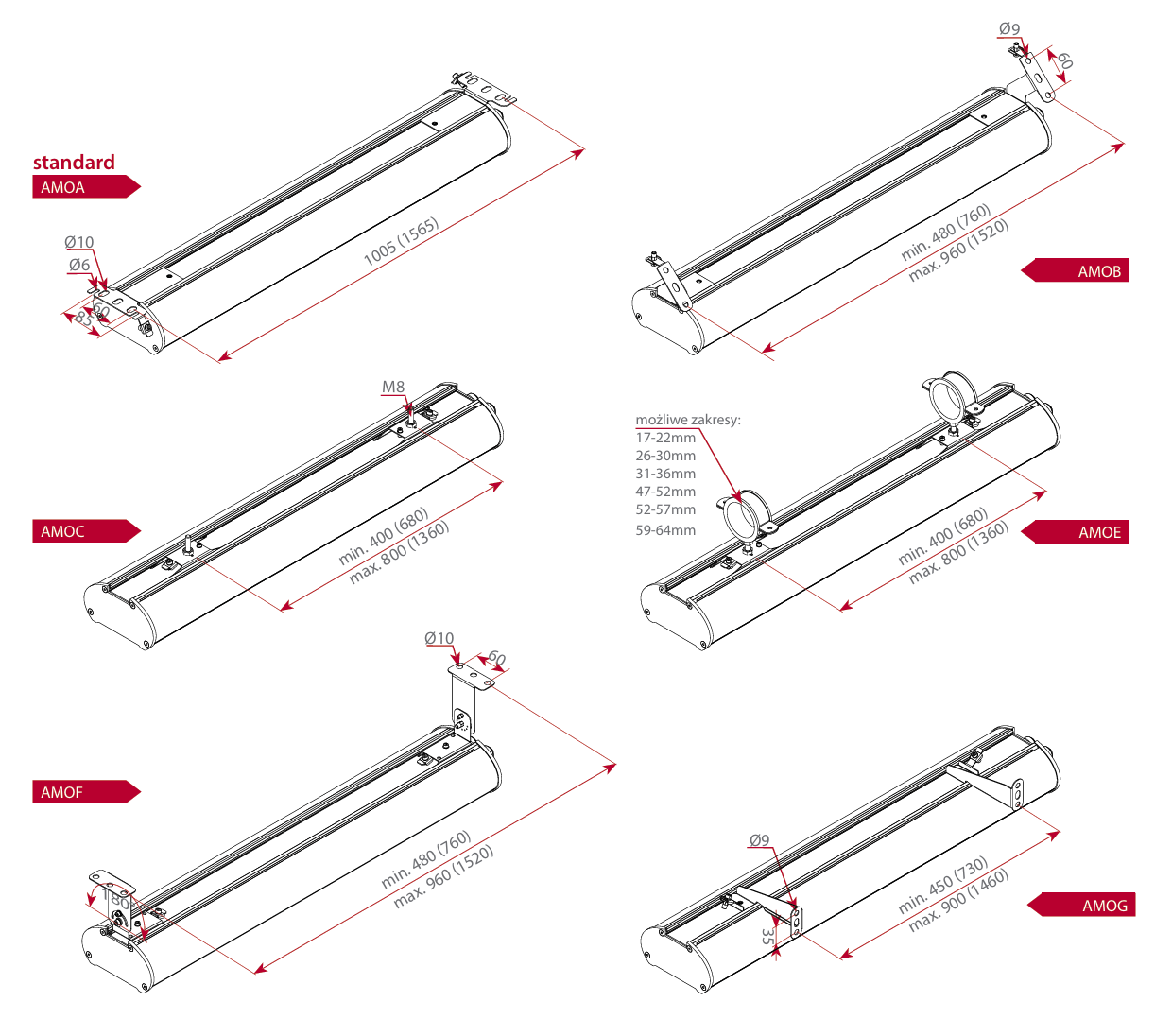

Mountings

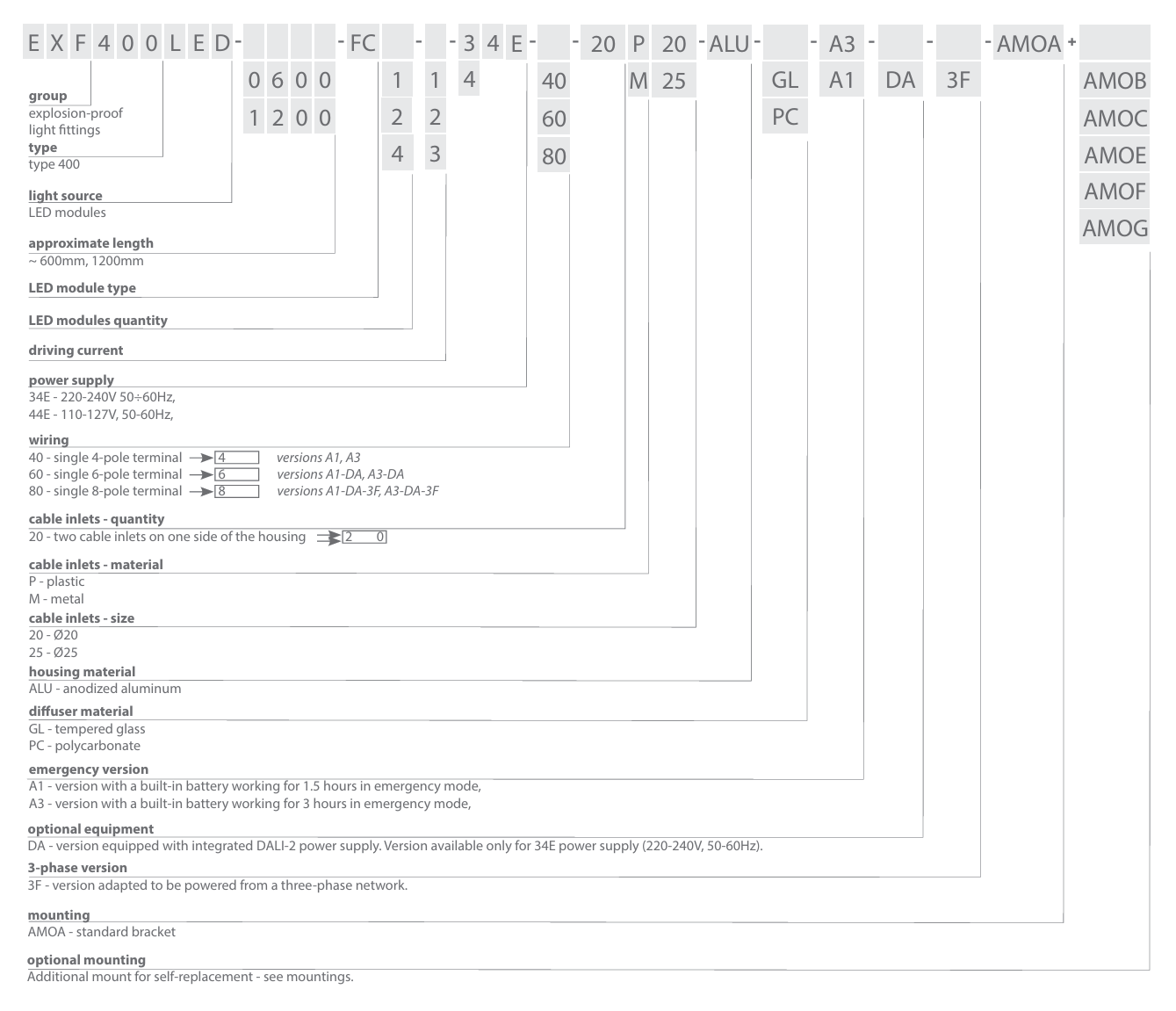

Configurations

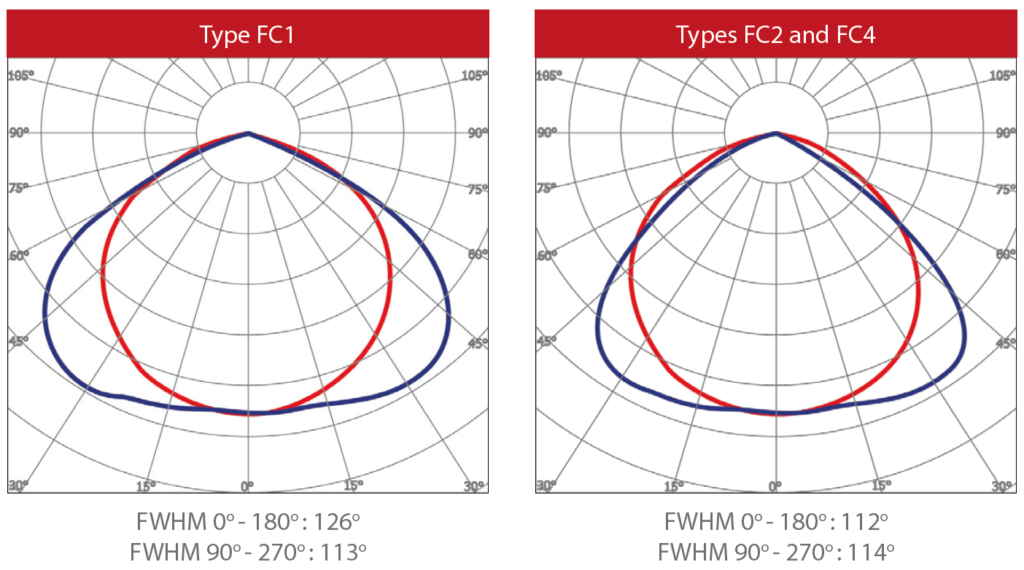

Photometry
