EXF400LED

EXF400LED

Explosion-proof LED luminaire designed for hazardous areas. Suitable for use in zones 1,21 and 2,22. The frame is made of aluminum, and the light aperture material is either polycarbonate or tempered glass. An optional DALI or battery-backed version is available.

No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption
No Caption

DOWNLOADS

Datasheet

TEKNINEN DATA

Technical

Light source:LED module
Protection:IP66/IP67
CRI:> 80
Power factor:≥ 0,95
Lifespan:>70 000h L80B10
Color temperature:4000K (6500K option)
Operating temperature range:-40°C … +55°C

Mechanical

Frame:Anodized aluminum
Light aperture:Glass, PC
Mounting rail:Powder-coated galvanized steel

Mounting

Mounting:Various mounting options and brackets

Power supply

Power supply110-254V 50-60Hz, 220-240V 0Hz or 230V 0/50-60Hz

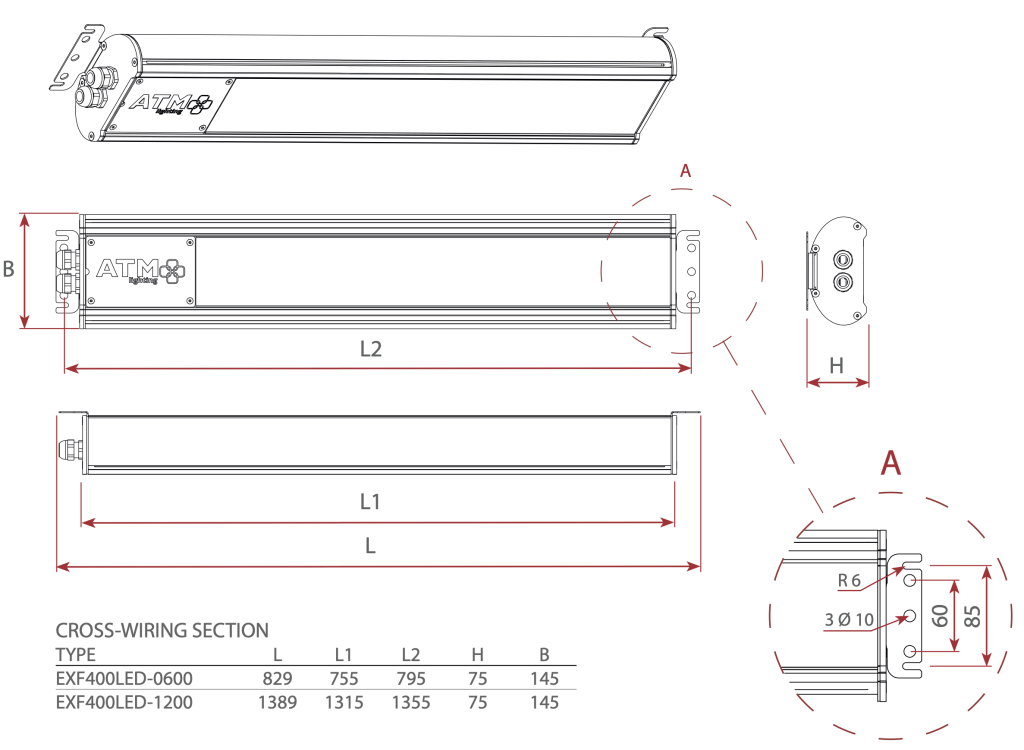

DIMENSIONS

STANDARD

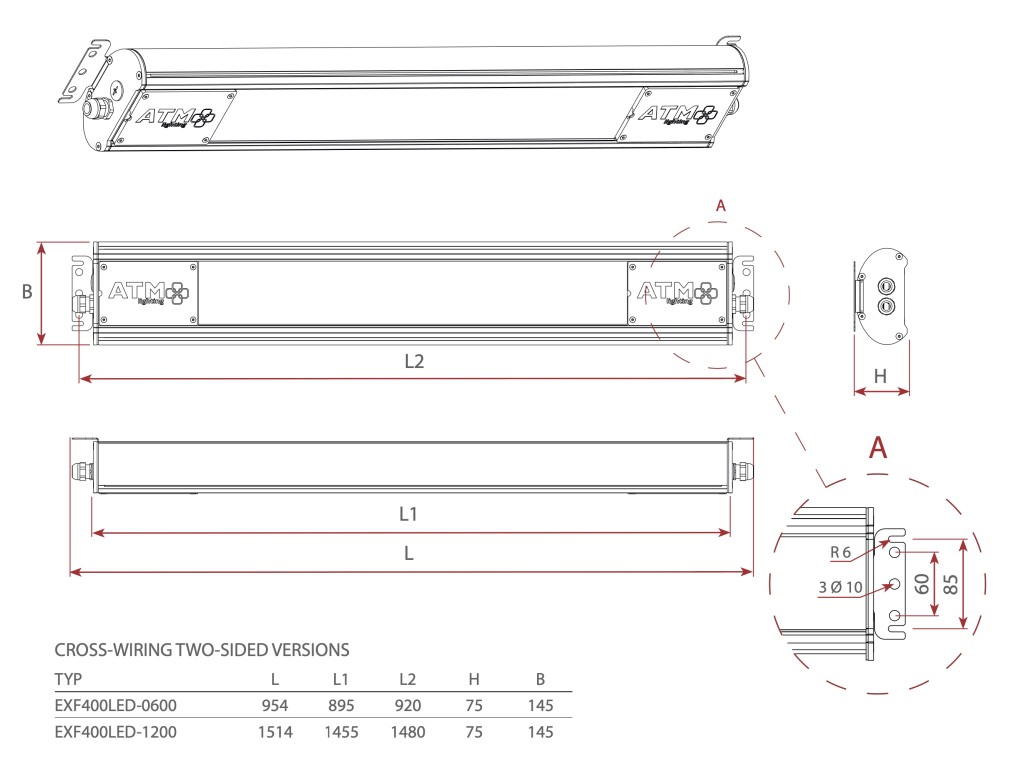

THROUGH-WIRED VERSION

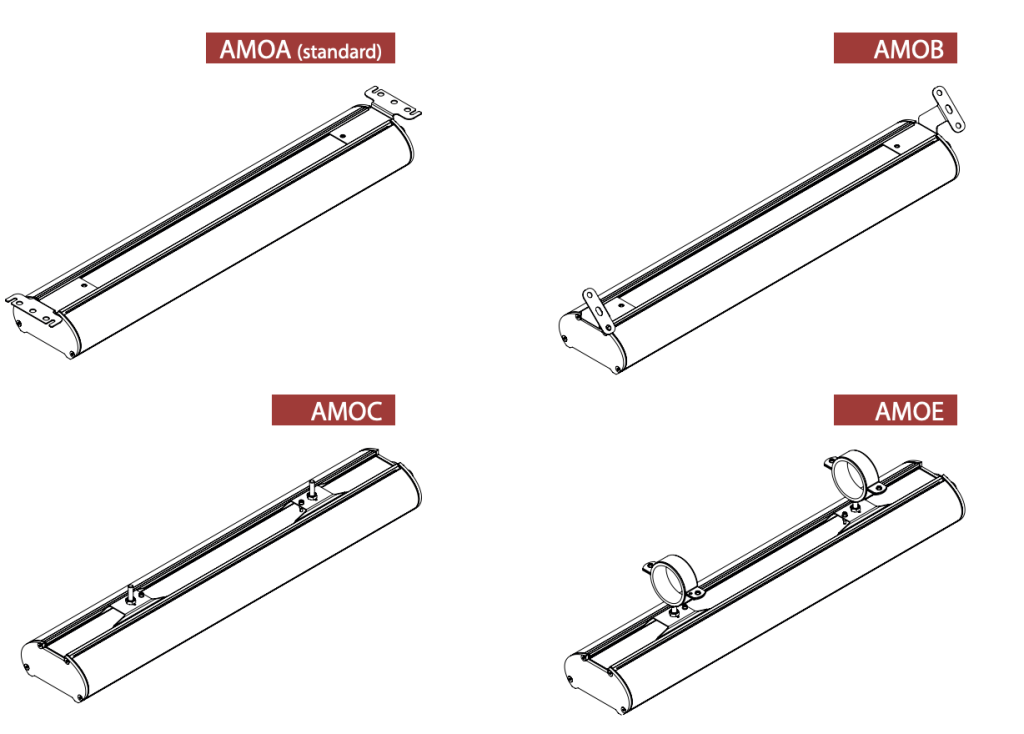

MOUNTING OPTIONS

CONFIGURATIONS
